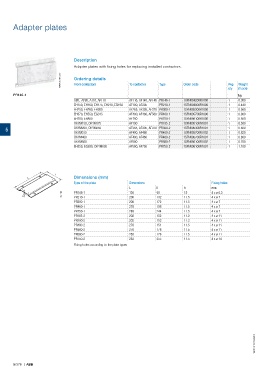

Adapter plates
Description
Adapter plates with fixing holes for replacing installed contactors.
1SFC101048V0001 Ordering details To contactor Type Order code Pkg Weight
From contactors
PR146-1 qty (1 pce)
kg
A95, AF95, A110, AF110 AF116, AF140, AF146 PR146-1 1SFN094200R1000 1 0.300
EH150, EH160, EH175, EH210, EG160 AF190, AF205 PR210-1 1SFN094900R1000 1 0.440
EH250, EH260, EH300 AF265, AF305, AF370 PR300-1 1SFN095300R1000 1 0.560
EH370, EH550, EG315 AF400, AF460, AF580 PR460-1 1SFN095700R1000 1 0.900
EH700, EH800 AF750 PR750-1 1SFN096100R1000 1 0.500
OKYM150, OKYM175 AF190 PR185-2 1SFN095100R1001 1 0.500
5 OKYM200, OKYM250 AF265, AF305, AF370 PR300-2 1SFN095300R1001 1 0.500
OKYM315 AF400, AF460 PR400-2 1SFN095700R1002 1 0.820
OKYM400 AF400, AF460 PR460-2 1SFN095700R1001 1 0.800
OKYM500 AF580 PR580-2 1SFN096100R1002 1 0.700
EH550, EG630, OKYM630 AF580, AF750 PR750-2 1SFN096100R1001 1 1.100
l
L Dimensions (mm)
Type of the plate Dimensions Fixing holes
L I h mm
E2119D PR146-1 150 90 15 4 x ø 6.5
h PR210-1 200 132 11.5 4 x ø 7
PR300-1 200 172 11.5 4 x ø 7
PR460-1 278 198 11.5 4 x ø 7
PR750-1 283 244 11.5 4 x ø 7
PR185-2 202 152 11.2 4 x ø 11
PR300-2 202 152 11.2 4 x ø 11
PR400-2 278 151 11.5 4 x ø 11
PR460-2 278 176 11.5 4 x ø 11
PR580-2 283 176 11.5 4 x ø 11
PR750-2 283 255 11.5 4 x ø 14
Fixing holes according to the plate types
