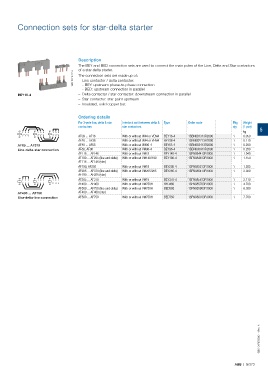

Connection sets for star-delta starter

Description
The BEY and BED connection sets are used to connect the main poles of the Line, Delta and Star contactors
of a star-delta starter.
1SBC100018V0014 The connection sets are made up of:
– Line contactor / delta contactor:
- BEY: upstream phase-to-phase connection
- BED: upstream connection in parallel
BEY16-4 – Delta contactor / star contactor: downstream connection in parallel
– Star contactor: star point upstream
– Insulated, solid copper bar.

Ordering details
For 3-pole line, delta & star Interlock unit between delta & Type Order code Pkg Weight
contactors star contactors qty (1 pce)
A1 A1 A1 kg 5
1 3 5 1 3 5 1 3 5
2 4 6 2 4 6 2 4 6 AF09 ... AF16 With or without VM4 or VEM4 BEY16-4 1SBN081313R2000 1 0.050
A2 A2 A2
AF26 ... AF38 With or without VM4 or VEM4 BEY38-4 1SBN082713R2000 1 0.110
AF09 ... AF370 AF40 ... AF65 With or without VM96-4 BEY65-4 1SBN083413R2000 1 0.200
Line-delta-star connection AF80, AF96 With or without VM96-4 BEY96-4 1SBN083913R2000 1 0.250
AF116 ... AF146 With or without VM19 BEY140-4 1SFN084413R1000 1 1.040
AF190 ... AF205 (line and delta) With or without VM140/190 BEY190-4 1SFN084813R1000 1 1.154
AF116 ... AF146 (star)
AF190, AF205 With or without VM19 BEY205-4 1SFN085213R1000 1 1.205
AF265 ... AF370 (line and delta) With or without VM205/265 BEY265-4 1SFN085413R1000 1 2.020
AF190 ... AF205 (star)
A1 A1 A1 AF265 ... AF370 With or without VM19 BEY370-4 1SFN085813R1000 1 2.110
1 3 5 1 3 5 1 3 5
2 4 6 2 4 6 2 4 6
A2 A2 A2 AF400 ... AF460 With or without VM750H BED460 1SFN085703R1000 1 4.700
AF580 ... AF750 (line and delta) With or without VM750H BED580 1SFN085903R1000 1 6.300
AF400 ... AF750 AF400 ... AF460 (star)
Star-delta-line connection AF580 ... AF750 With or without VM750H BED750 1SFN086103R1000 1 7.700

1SBC101737S0201 - Rev. A

ABB | 5/373
