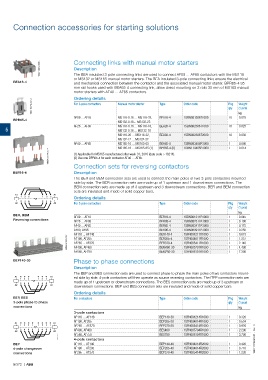

Connection accessories for starting solutions

1SBC100014V0014 Connecting links with manual motor starters
Description
The BEA insulated 3-pole connecting links are used to connect AF09 ... AF65 contactors with the MS116
or MS132 or MS165 manual motor starters. The BEA insulated 3-pole connecting links ensure the electrical
BEA16-4 and mechanical connection between the contactor and the associated manual motor starter. BPR65-4 35
mm rail hooks used with BEA65-4 connecting link, allow direct mounting on 2 rails 35 mm of MS165 manual
motor starters with AF40 ... AF65 contactors.
Ordering details
1SBC100078V0014 For 3-pole contactors Manual motor starter Type Order code Pkg Weight
(1 pce)
qty
AF09 ... AF16 MS116-0.16 … MS116-25, BEA16-4 1SBN081306T1000 10 kg
0.025
BPR65-4
MS132-0.16… MS132-25
AF26 ... AF38 MS116-0.16 … MS116-16, BEA26-4 1SBN082306T1000 10 0.025
5 MS132-0.16 ... MS132-10
MS116-20 … MS116-32, BEA38-4 1SBN082306T2000 10 0.030
MS132-12 ... MS132-32
AF40 ... AF65 MS165-16 … MS165-65 BEA65-4 1SBN083406R1000 1 0.090
MS165-16 … MS165-65 (1) BPR65-4 (2) 1SBN113405R1000 1 0.014
1SBC100016V0014 (1) Applicable for MS165 manufactured after week 31, 2016 (date code > 16214).
(2) Use one BPR65-4 for each contactor AF40 … AF65.
Connection sets for reversing contactors
BER16-4 Description
The BER and BEM connection sets are used to connect the main poles of two 3-pole contactors mounted
side by side. The BER connection sets are made up of 1 upstream and 1 downstream connections. The
BEM connection sets are made up of 3 upstream and 3 downstream connections. BER and BEM connection
sets are insulated and made of solid copper bars.
A1 A1
1 3 5 1 3 5 Ordering details
2 4 6 2 4 6
A2 A2 For 3-pole contactors Type Order code Pkg Weight
qty (1 pce)
kg
BER, BEM AF09 ... AF16 BER16-4 1SBN081311R1000 1 0.045
Reversing connections AF26 ... AF38 BER38-4 1SBN082311R1000 1 0.100
AF40 ... AF65 BER65-4 1SBN083411R1000 1 0.175
AF80, AF96 BER96-4 1SBN083911R1000 1 0.250
AF116 ... AF146 BER140-4 1SFN084211R1000 1 0.615
1SFC101052V0001 AF190, AF205 BER205-4 1SFN084811R1000 1 1 1 1.237
AF265 ... AF370
2.140
1SFN085411R1000
BER370-4
1SFN085701R1000
4.400
AF400, AF460
BEM460-30
AF580, AF750 BEM750-30 1SFN086101R1000 1 7.300
Phase to phase connections
BEP140-30
Description
The BEP and BES connection sets are used to connect phase to phase the main poles of two contactors mount-
A1 A1 ed side by side. 4-pole contactors will then operate as source reversing contactors. The BEP connection sets are
1 3 5 1 3 5
made up of 1 upstream or downstream connections. The BES connection sets are made up of 3 upstream or
2 4 6 2 4 6
A2 A2 downstream connections. BEP and BES connection sets are insulated and made of solid copper bars.
Ordering details
BEP, BES For contactors Type Order code Pkg Weight
3-pole phase to phase qty (1 pce)
connections kg
3-pole contactors
AF116 … AF146 BEP140-30 1SFN084214R1000 1 0.320
AF190, AF205 BEP205-30 1SFN084814R1000 1 0.534
A1 A1
1 3 5 7 1 3 5 7 AF265 … AF370 BEP370-30 1SFN085414R1000 1 0.926
2 4 6 8 2 4 6 8
A2 A2 AF400, AF460 BES460 1SFN085704R1000 1 2.200
E0743D AF580, AF750 BES750 1SFN086104R1000 1 3.700 1SBC101736S0201 - Rev. D
4-pole contactors
BEP AF116 ... AF140 BEP140-40 1SFN084214R2000 1 0.420
4-pole changeover AF190 ... AF205 BEP205-40 1SFN084814R2000 1 0.710
connections AF265 ... AF370 BEP370-40 1SFN085414R2000 1 1.230
