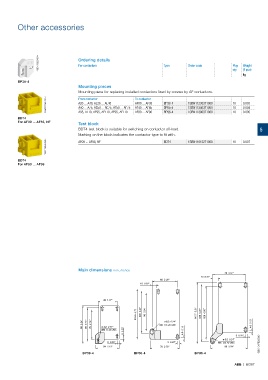

Page 567 - Motor_protection_and_control_Manual_motor_starters_ contactors

Other accessories

1SBC100022V0014 Ordering details Type Order code Pkg Weight

For contactors
qty
(1 pce)
kg
BP38-4
Mounting pieces
Mounting piece for replacing installed contactors fixed by screws by AF contactors.
1SBC100041V0014 From contactor To contactor BP38-4 1SBN112303T1000 10 0.003
AF09 ... AF38
A26 ... A40, AL26 ... AL40
0.004
1SBN113403T1000
10
BP65-4
AF40 ... AF65
A40 ... A75, AE50 ... AE75, AF50 ... AF75
BDT4 A95, A110, AE95, AE110, AF95, AF110 AF80 ... AF96 BP96-4 1SBN113903T1000 10 0.005
For AF09 ... AF65, NF
Test block
BDT4 test block is suitable for switching on contactor off-load. 5
Marking on the block indicates the contactor type to fit with.
1SBC100042V0014 AF09 ... AF96, NF BDT4 1SBN110122T1000 10 0.007

BDT4
For AF80 ... AF96

Main dimensions mm, inches
78 3.07"
13 0.51"
60 2.36"
10 0.39"

45 1.77"
119.5 4.70" 100 3.94" 90 3.54" 147.7 5.81" 136 5.35" 126 4.96"

90 3.54" 80 3.15" 70 2.76" ø 4.2 0.17" M6 1/4-20 UNC 4.6 0.18"
ø 6.2 0.24"
M4 8-32 UNC 5 0.20" 4.6 0.18"
5 0.20"
ø 6.2 0.24"
5 0.20" 5 0.20" M6 1/4-20 UNC
54 2.13" 70 2.76" 90 3.54" 1SBC101752S0201
BP38-4 BP65-4 BP96-4

ABB | 5/367
