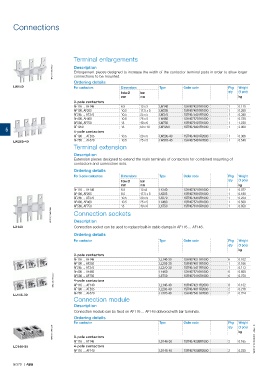

Connections

Terminal enlargements

1SFC101050V0001 Description
Enlargement pieces designed to increase the width of the contactor terminal pads in order to allow larger
connections to be mounted.
Ordering details
LW140 For contactors Dimensions Type Order code Pkg Weight
hole Ø bar qty (1 pce)
mm mm kg
3-pole contactors
AF116 ... AF146 6.5 13 x 3 LW140 1SFN074207R1000 1 0.115
AF190, AF205 10.5 17.5 x 5 LW205 1SFN074807R1000 1 0.260
AF265 ... AF370 10.5 25 x 5 LW370 1SFN075407R1000 1 0.340
AF400, AF460 10.5 25 x 5 LW460 1SFN075707R1000 1 0.730
AF580, AF750 13 40 x 6 LW750 1SFN076107R1000 1 1.230
5 AF1250 13 50 x 10 LW1250 1SFN076407R1000 1 2.000
4-pole contactors
AF190 … AF205 10.5 20 x 5 LW205-40 1SFN074807R2000 1 0.306
LW205-40 AF265 … AF370 10.5 25 x 5 LW370-40 1SFN075407R2000 1 0.540
Terminal extension
Description
Extension pieces designed to extend the main terminals of contactors for combined mounting of
contactors and connection sets.
Ordering details
For 3-pole contactors Dimensions Type Order code Pkg Weight
hole Ø bar qty (1 pce)
mm mm kg
AF116 ... AF146 6.5 13 x3 LX140 1SFN074210R1000 1 0.072
AF190, AF205 8.5 17.5 x 5 LX205 1SFN074810R1000 1 0.180
AF265 ... AF370 10.5 20 x 5 LX370 1SFN075410R1000 1 0.234
AF400, AF460 10.5 25 x 5 LX460 1SFN075710R1000 1 0.500
AF580, AF750 13 40 x 6 LX750 1SFN076110R1000 1 0.850
1SFC101049V0001 Connection sockets

Connection socket can be used to replace built-in cable clamps in AF116 ... AF146.
LX140 Description
Ordering details
For contactor Type Order code Pkg Weight
qty (1 pce)
kg
3-pole contactors
AF116 ... AF146 LL146-30 1SFN074211R1000 6 0.102
AF190 ... AF205 LL205-30 1SFN074811R1000 1 0.166
AF265 ... AF370 LL370-30 1SFN075411R1000 1 0.173
AF400 ... AF460 LE460 1SFN075716R1000 6 6 0.600
1SFC101073V0001 4-pole contactors
0.750
AF580 ... AF750
LE750
1SFN076116R1000
AF116 … AF140
AF190 … AF205 LL146-40 1SFN074211R2000 8 2 0.132
LL205-40
0.216
1SFN074811R2000
AF265 … AF370 LL370-40 1SFN075411R2000 2 0.224
LL146-30
Connection module
Description
Connection module can be fixed on AF116 ... AF146 delivered with bar terminals.
Ordering details
For contactor Type Order code Pkg Weight
1SFC101046V0001 3-pole contactors kg
(1 pce)
qty
AF116 ... AF146 LD146-30 1SFN074208R1000 2 0.165 1SFC101100C0201 - Rev. C
LD146-30 4-pole contactors
AF116 … AF140 LD146-40 1SFN074208R2000 2 0.225
5/370 | ABB
