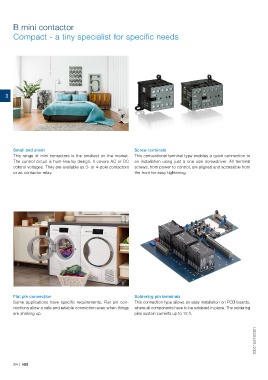

B mini contactor
Compact - a tiny specialist for specific needs
3
Small and silent Screw terminals
This range of mini contactors is the smallest on the market. This conventional terminal type enables a quick connection to
The control circuit is hum-free by design. It covers AC or DC an installation using just a one size screwdriver. All terminal
control voltages. They are available as 3- or 4-pole contactors screws, from power to control, are aligned and accessible from
or as contactor relay. the front for easy tightening.
Flat pin connection Soldering pin terminals
Some applications have specific requirements. Flat pin con- This connection type allows an easy installation on PCB boards,
nections allow a safe and reliable connection even when things where all components have to be soldered in place. The soldering
are shaking up. pins sustain currents up to 12 A.
