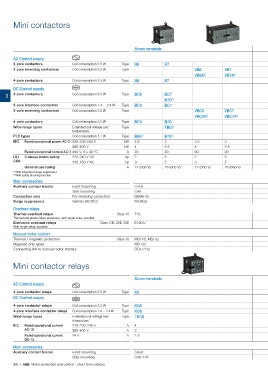

Mini contactors

Screw terminals Soldering pins Flat pins

AC Control supply
3-pole contactors Coil consumption 3.5 W Type B6 B7 - - B6...P B7...P - - B6...F B7...F - -
3-pole reversing contactors Coil consumption 3.5 W Type - - VB6 VB7 - - VB6...P VB7...P - - VB6...F VB7...F
VB6A 2) VB7A 2) VB6A...P 2) VB7A...P 2) VB6A...F 2) VB7A...F 2)
4-pole contactors Coil consumption 3.5 W Type B6 B7 - - - - - - - -
DC Control supply
3 3-pole contactors Coil consumption 3.5 W Type BC6 BC7 - - BC6...P BC7...P - - BC6...F BC7...F - -
B7D 1) B7D...P 1) B7D...F 1)
3-pole interface contactors Coil consumption 1.4 ... 2.4 W Type BC6 BC7 - - BC6...P BC7...P - - BC6...F BC7...F - -
3-pole reversing contactors Coil consumption 3.5 W Type - - VBC6 VBC7 - - VBC6...P VBC7...P - - VBC6...F VBC7...F
VBC6A 2) VBC7A 2) VBC6A...P 2) VBC7A...P 2) VBC6A...F 2) VBC7A...F 2)
4-pole contactors Coil consumption 3.5 W Type BC6 B7D - - - -
Wide range types Extended coil voltage and Type - TBC7
temperature
PLC types Coil consumption 1.7 W Type B6S 1) B7S 1)
IEC Rated operational power AC-3 220-230-240 V kW 2.2 3 2.2 3 2.2 3 2.2 3 2.2 3 2.2 3
380-400 V kW 4 5.5 4 5.5 4 5.5 4 5.5 4 5.5 4 5.5
Rated operational current AC-1 400 V, θ ≤ 40 °C A 20 20 20 20 12 12 12 12 20 20 20 20
UL/ 3-phase motor rating 220-240 V AC hp 2 3 2 3 2 3 2 3 2 3 2 3
CSA 440-480 V AC hp 3 5 3 5 3 5 3 5 3 5 3 5
General use rating A 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V) 12 (300 V) 16 (600 V)
1) With integrated surge suppressor
2) With safety blocking function
Main accessories
Auxiliary contact blocks Front mounting CAF6 - -
Side mounting CA6 CA6-11K-P CA6-11K-F
Connection sets For reversing contactors BSM6-30 - -
Surge suppressors Varistor (AC/DC) RV-BC6 - -
Overload relays
Thermal overload relays Class 10 T16 - -
Thermal and phase failure protection, with single setup possible
Electronic overload relays Class 10E, 20E, 30E E16DU - -
With single setup possible
Manual motor starters
Thermal / magnetic protection Class 10 MS116, MS132 MS116, MS132 MS116, MS132
Magnetic only types MO132 MO132 MO132
Connecting link to manual motor starters BEA7/132 - -

Mini contactor relays

Screw terminals Soldering pins Flat pins
AC Control supply
4-pole contactor relays Coil consumption 3.5 W Type K6 K6...P K6...F
DC Control supply
4-pole contactor relays Coil consumption 3.5 W Type KC6 KC6...P KC6...F
4-pole interface contactor relays Coil consumption 1.4 ... 2.4 W Type KC6 KC6...P KC6...F
Wide range types Extended coil voltage and Type TKC6
temperature
IEC Rated operational current 220-230-240 V A 4 4 4
AC-15 380-400 V A 3 3 3
Rated operational current 24 V A 2.5 2.5 2.5
DC-13
Main accessories
Auxiliary contact blocks Front mounting CAF6 - -
Side mounting CA6-11K CA6-11K-P CA6-11K-F
3/6 | ABB Motor protection and control - short form catalog
