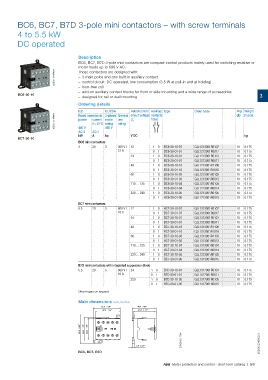

BC6, BC7, B7D 3-pole mini contactors – with screw terminals
4 to 5.5 kW

DC operated

Description
BC6, BC7, B7D 3-pole mini contactors are compact control products mainly used for switching resistive or
motor loads up to 690 V AC.
2CDC211040F0011 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: DC operated, low consumption (3.5 W at pull-in and at holding)
– hum-free coil
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
BC6-30-10 3
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
2CDC211013F0011 power current motor use U C fitted
(1 pce)
circuit voltage contacts
Rated operational 3-phase General
qty
rating
θ ≤ 40 °C
rating
400 V
480 V
AC-3
kW AC-1 hp V DC kg
A
BC7-30-10
BC6 mini contactors
4 20 3 300 V / 12 1 0 BC6-30-10-07 GJL1213001R0107 10 0.175
12 A 0 1 BC6-30-01-07 GJL1213001R0017 10 0.175
24 1 0 BC6-30-10-01 GJL1213001R0101 10 0.175
0 1 BC6-30-01-01 GJL1213001R0011 10 0.175
48 1 0 BC6-30-10-16 GJL1213001R1106 10 0.175
0 1 BC6-30-01-16 GJL1213001R1016 10 0.175
60 1 0 BC6-30-10-03 GJL1213001R0103 10 0.175
0 1 BC6-30-01-03 GJL1213001R0013 10 0.175
110 … 125 1 0 BC6-30-10-04 GJL1213001R0104 10 0.175
0 1 BC6-30-01-04 GJL1213001R0014 10 0.175
220 … 240 1 0 BC6-30-10-05 GJL1213001R0105 10 0.175
0 1 BC6-30-01-05 GJL1213001R0015 10 0.175
BC7 mini contactors
5.5 20 5 600 V / 12 1 0 BC7-30-10-07 GJL1313001R0107 10 0.175
16 A 0 1 BC7-30-01-07 GJL1313001R0017 10 0.175
24 1 0 BC7-30-10-01 GJL1313001R0101 10 0.175
0 1 BC7-30-01-01 GJL1313001R0011 10 0.175
48 1 0 BC7-30-10-16 GJL1313001R1106 10 0.175
0 1 BC7-30-01-16 GJL1313001R1016 10 0.175
60 1 0 BC7-30-10-03 GJL1313001R1103 10 0.175
0 1 BC7-30-01-03 GJL1313001R0013 10 0.175
110 … 125 1 0 BC7-30-10-04 GJL1313001R0104 10 0.175
0 1 BC7-30-01-04 GJL1313001R0014 10 0.175
220 … 240 1 0 BC7-30-10-05 GJL1313001R0105 10 0.175
0 1 BC7-30-01-05 GJL1313001R0015 10 0.175
B7D mini contactors with integrated suppressor diode
5.5 20 5 600 V / 24 1 0 B7D-30-10-01 GJL1317001R0101 10 0.175
16 A 0 1 B7D-30-01-01 GJL1317001R0011 10 0.175
220 1 0 B7D-30-10-05 GJL1317001R0105 10 0.175
0 1 B7D-30-01-05 GJL1317001R0015 10 0.175
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"
2CDC212001F0011

4.5 0.18" 2CDC102015C0201
BC6, BC7, B7D

ABB Motor protection and control - short form catalog | 3/9
