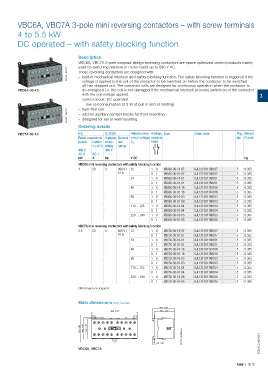

VBC6A, VBC7A 3-pole mini reversing contactors – with screw terminals
4 to 5.5 kW

DC operated – with safety blocking function

Description
VBC6A, VBC7A 3-pole compact design reversing contactors are space optimized control products mainly
used for switching resistive or motor loads up to 690 V AC.
2CDC211044F0011 These reversing contactors are designed with:
– built-in mechanical interlock and safety blocking function. The safety blocking function is triggered if the
voltage is applied to the coil of the contactor to be switched on before the contactor to be switched
off has dropped out. The contactor coils are designed for continuous operation when the contactor is
VBC6A-30-10 de-energised i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor
with the coil voltage applied. 3
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
2CDC211007F0011 – add-on auxiliary contact blocks for front mounting
– hum-free coil
– designed for rail or wall mounting

IEC
UL/CSA
VBC7A-30-10 Ordering details Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC6A mini reversing contactors with safety blocking function
4 20 3 300 V / 12 1 0 VBC6A-30-10-07 GJL1213911R0107 5 0.355
12 A 0 1 VBC6A-30-01-07 GJL1213911R0017 5 0.355
24 1 0 VBC6A-30-10-01 GJL1213911R0101 5 0.355
0 1 VBC6A-30-01-01 GJL1213911R0011 5 0.355
48 1 0 VBC6A-30-10-16 GJL1213911R1106 5 0.355
0 1 VBC6A-30-01-16 GJL1213911R1016 5 0.355
60 1 0 VBC6A-30-10-03 GJL1213911R0103 5 0.355
0 1 VBC6A-30-01-03 GJL1213911R0013 5 0.355
110 ... 125 1 0 VBC6A-30-10-04 GJL1213911R0104 5 0.355
0 1 VBC6A-30-01-04 GJL1213911R0014 5 0.355
220 … 240 1 0 VBC6A-30-10-05 GJL1213911R0105 5 0.355
0 1 VBC6A-30-01-05 GJL1213911R0015 5 0.355
VBC7A mini reversing contactors with safety blocking function
5.5 20 5 600 V / 12 1 0 VBC7A-30-10-07 GJL1313911R0107 5 0.355
16 A 0 1 VBC7A-30-01-07 GJL1313911R0017 5 0.355
24 1 0 VBC7A-30-10-01 GJL1313911R0101 5 0.355
0 1 VBC7A-30-01-01 GJL1313911R0011 5 0.355
48 1 0 VBC7A-30-10-16 GJL1313911R1106 5 0.355
0 1 VBC7A-30-01-16 GJL1313911R0016 5 0.355
60 1 0 VBC7A-30-10-03 GJL1313911R0103 5 0.355
0 1 VBC7A-30-01-03 GJL1313911R0013 5 0.355
110 ... 125 1 0 VBC7A-30-10-04 GJL1313911R0104 5 0.355
0 1 VBC7A-30-01-04 GJL1313911R0014 5 0.355
220 … 240 1 0 VBC7A-30-10-05 GJL1313911R0105 5 0.355
0 1 VBC7A-30-01-05 GJL1313911R0015 5 0.355
Other types on request

Main dimensions mm, inches
46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"
2CDC212005F0011

4.5 0.18" 2CDC102019C0201
VBC6A, VBC7A
