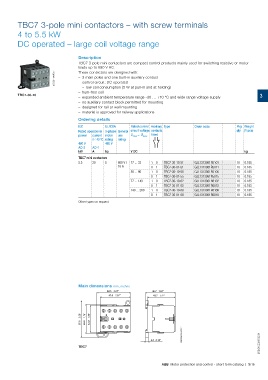

TBC7 3-pole mini contactors – with screw terminals
4 to 5.5 kW

DC operated – large coil voltage range

Description
TBC7 3-pole mini contactors are compact control products mainly used for switching resistive or motor
loads up to 690 V AC.
2CDC211015F0011 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: DC operated
– low coil consumption (5 W at pull-in and at holding)
– hum-free coil
TBC7-30-10 3
– expanded ambient temperature range -30 … +70 °C and wide range voltage supply
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
– material is approved for railway applications
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U Cmin ... U Cmax fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
TBC7 mini contactors
5.5 20 5 600 V / 17 ... 32 1 0 TBC7-30-10-51 GJL1313061R5101 10 0.185
16 A 0 1 TBC7-30-01-51 GJL1313061R5011 10 0.185
50 ... 90 1 0 TBC7-30-10-55 GJL1313061R5105 10 0.185
0 1 TBC7-30-01-55 GJL1313061R5015 10 0.185
77 ... 143 1 0 TBC7-30-10-62 GJL1313061R6102 10 0.185
0 1 TBC7-30-01-62 GJL1313061R6012 10 0.185
140 ... 260 1 0 TBC7-30-10-68 GJL1313061R6108 10 0.185
0 1 TBC7-30-01-68 GJL1313061R6018 10 0.185
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18"
TBC7 2CDC102020C0201
