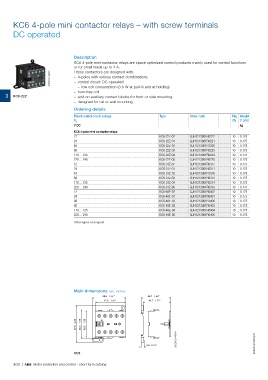

KC6 4-pole mini contactor relays – with screw terminals
DC operated

Description
KC6 4-pole mini-contactor relays are space optimized control products mainly used for control functions
or for small loads up to 4 A.
These contactors are designed with:
2CDC211016F0011 – 4-poles with various contact combinations
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
3 KC6-22Z – add-on auxiliary contact blocks for front or side mounting
– designed for rail or wall mounting
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C qty (1 pce)
V DC kg
KC6 4-pole mini contactor relays
12 KC6-22Z-07 GJH1213001R0227 10 0.175
24 KC6-22Z-01 GJH1213001R0221 10 0.175
48 KC6-22Z-16 GJH1213001R1226 10 0.175
60 KC6-22Z-03 GJH1213001R0223 10 0.175
110 ... 125 KC6-22Z-04 GJH1213001R0224 10 0.175
220 ... 240 KC6-22Z-05 GJH1213001R0225 10 0.175
12 KC6-31Z-07 GJH1213001R0317 10 0.175
24 KC6-31Z-01 GJH1213001R0311 10 0.175
48 KC6-31Z-16 GJH1213001R1316 10 0.175
60 KC6-31Z-03 GJH1213001R0313 10 0.175
110 ... 125 KC6-31Z-04 GJH1213001R0314 10 0.175
220 ... 240 KC6-31Z-05 GJH1213001R0315 10 0.175
12 KC6-40E-07 GJH1213001R0407 10 0.175
24 KC6-40E-01 GJH1213001R0401 10 0.175
48 KC6-40E-16 GJH1213001R1406 10 0.175
60 KC6-40E-03 GJH1213001R0403 10 0.175
110 ... 125 KC6-40E-04 GJH1213001R0404 10 0.175
220 ... 240 KC6-40E-05 GJH1213001R0405 10 0.175
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18" 2CDC102012C0201
KC6
