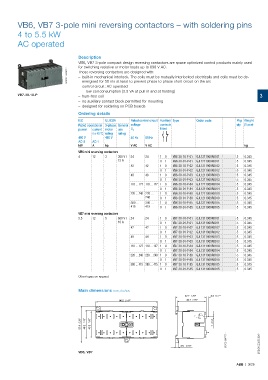

VB6, VB7 3-pole mini reversing contactors – with soldering pins
4 to 5.5 kW

AC operated

Description
VB6, VB7 3-pole compact design reversing contactors are space optimized control products mainly used
for switching resistive or motor loads up to 690 V AC.
2CDC211010S0011 – built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
These reversing contactors are designed with:
energised for 50 ms at least to prevent phase to phase short circuit on the arc
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
VB7-30-10-P – hum-free coil 3
– no auxiliary contact block permitted for mounting
– designed for soldering on PCB boards
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V 50 Hz 60 Hz
AC-3 AC-1
kW A hp V AC V AC kg
VB6 mini reversing contactors
4 12 3 300 V / 24 24 1 0 VB6-30-10-P-01 GJL1211909R0101 5 0.345
12 A 0 1 VB6-30-01-P-01 GJL1211909R0011 5 0.345
42 42 1 0 VB6-30-10-P-02 GJL1211909R0102 5 0.345
0 1 VB6-30-01-P-02 GJL1211909R0012 5 0.345
48 48 1 0 VB6-30-10-P-03 GJL1211909R0103 5 0.345
0 1 VB6-30-01-P-03 GJL1211909R0013 5 0.345
110 … 127 110 … 127 1 0 VB6-30-10-P-84 GJL1211909R8104 5 0.345
0 1 VB6-30-01-P-84 GJL1211909R8014 5 0.345
220 … 240 220 … 1 0 VB6-30-10-P-80 GJL1211909R8100 5 0.345
240 0 1 VB6-30-01-P-80 GJL1211909R8010 5 0.345
380 … 380 … 1 0 VB6-30-10-P-85 GJL1211909R8105 5 0.345
415 415 0 1 VB6-30-01-P-85 GJL1211909R8015 5 0.345
VB7 mini reversing contactors
5.5 12 5 600 V / 24 24 1 0 VB7-30-10-P-01 GJL1311909R0101 5 0.345
16 A 0 1 VB7-30-01-P-01 GJL1311909R0011 5 0.345
42 42 1 0 VB7-30-10-P-02 GJL1311909R0102 5 0.345
0 1 VB7-30-01-P-02 GJL1311909R0012 5 0.345
48 48 1 0 VB7-30-10-P-03 GJL1311909R0103 5 0.345
0 1 VB7-30-01-P-03 GJL1311909R0013 5 0.345
110 … 127 110 … 127 1 0 VB7-30-10-P-84 GJL1311909R8104 5 0.345
0 1 VB7-30-01-P-84 GJL1311909R8014 5 0.345
220 … 240 220 … 240 1 0 VB7-30-10-P-80 GJL1311909R8100 5 0.345
0 1 VB7-30-01-P-80 GJL1311909R8010 5 0.345
380 … 415 380 … 415 1 0 VB7-30-10-P-85 GJL1311909R8105 5 0.345
0 1 VB7-30-01-P-85 GJL1311909R8015 5 0.345
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"

57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"

2CDC212007F0011

4.5 0.18" 2CDC102025C0201
VB6, VB7

ABB | 3/25
