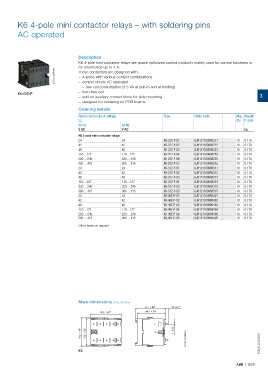

K6 4-pole mini contactor relays – with soldering pins
AC operated

Description
K6 4-pole mini-contactor relays are space optimized control products mainly used for control functions or
for small loads up to 4 A.
2CDC211022F0011 – 4-poles with various contact combinations
These contactors are designed with:
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
K6-22Z-P
– add-on auxiliary contact block for side mounting 3
– designed for soldering on PCB boards
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C qty (1 pce)
50 Hz 60 Hz
V AC V AC kg
K6 4-pole mini contactor relays
24 24 K6-22Z-P-01 GJH1211009R0221 10 0.170
42 42 K6-22Z-P-02 GJH1211009R0222 10 0.170
48 48 K6-22Z-P-03 GJH1211009R0223 10 0.170
110 ...127 110 ...127 K6-22Z-P-84 GJH1211009R8224 10 0.170
220 ... 240 220 ... 240 K6-22Z-P-80 GJH1211009R8220 10 0.170
380 ... 415 380 ... 415 K6-22Z-P-85 GJH1211009R8225 10 0.170
24 24 K6-31Z-P-01 GJH1211009R0311 10 0.170
42 42 K6-31Z-P-02 GJH1211009R0312 10 0.170
48 48 K6-31Z-P-03 GJH1211009R0313 10 0.170
110 ...127 110 ...127 K6-31Z-P-84 GJH1211009R8314 10 0.170
220 ... 240 220 ... 240 K6-31Z-P-80 GJH1211009R8310 10 0.170
380 ... 415 380 ... 415 K6-31Z-P-85 GJH1211009R8315 10 0.170
24 24 K6-40E-P-01 GJH1211009R0401 10 0.170
42 42 K6-40E-P-02 GJH1211009R0402 10 0.170
48 48 K6-40E-P-03 GJH1211009R0403 10 0.170
110 ...127 110 ...127 K6-40E-P-84 GJH1211009R8404 10 0.170
220 ... 240 220 ... 240 K6-40E-P-80 GJH1211009R8400 10 0.170
380 ... 415 380 ... 415 K6-40E-P-85 GJH1211009R8405 10 0.170
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04" 2CDC212003F0011

K6 2CDC102030C0201
