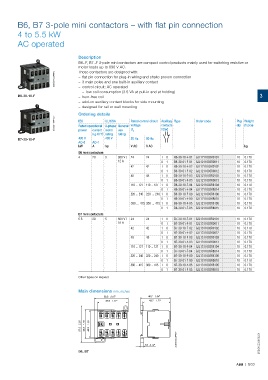

B6, B7 3-pole mini contactors – with flat pin connection
4 to 5.5 kW

AC operated

Description
B6..F, B7..F 3-pole mini contactors are compact control products mainly used for switching resistive or
motor loads up to 690 V AC.
These contactors are designed with:
2CDC211002F0010 – flat pin connection for plug-in wiring and shake proven connection
– 3 main poles and one built-in auxiliary contact
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
B6-30-10-F – hum-free coil 3
– add-on auxiliary contact blocks for side mounting
– designed for rail or wall mounting
Ordering details
2CDC211031F0011 IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
qty
(1 pce)
voltage
contacts
Rated operational 3-phase General
power
current
rating
rating
θ ≤ 40 °C motor use U C fitted
B7-30-10-F 400 V 480 V 50 Hz 60 Hz
AC-3 AC-1
kW A hp V AC V AC kg
B6 mini contactors
4 20 3 300 V / 24 24 1 0 B6-30-10-F-01 GJL1211003R0101 10 0.170
12 A 0 1 B6-30-01-F-01 GJL1211003R0011 10 0.170
42 42 1 0 B6-30-10-F-02 GJL1211003R0102 10 0.170
0 1 B6-30-01-F-02 GJL1211003R0012 10 0.170
48 48 1 0 B6-30-10-F-03 GJL1211003R0103 10 0.170
0 1 B6-30-01-F-03 GJL1211003R0013 10 0.170
110 … 127 110 … 127 1 0 B6-30-10-F-84 GJL1211003R8104 10 0.170
0 1 B6-30-01-F-84 GJL1211003R8014 10 0.170
220 … 240 220 … 240 1 0 B6-30-10-F-80 GJL1211003R8100 10 0.170
0 1 B6-30-01-F-80 GJL1211003R8010 10 0.170
380 … 415 380 … 415 1 0 B6-30-10-F-85 GJL1211003R8105 10 0.170
0 1 B6-30-01-F-85 GJL1211003R8015 10 0.170
B7 mini contactors
5.5 20 5 600 V / 24 24 1 0 B7-30-10-F-01 GJL1311003R0101 10 0.170
16 A 0 1 B7-30-01-F-01 GJL1311003R0011 10 0.170
42 42 1 0 B7-30-10-F-02 GJL1311003R0102 10 0.170
0 1 B7-30-01-F-02 GJL1311003R0012 10 0.170
48 48 1 0 B7-30-10-F-03 GJL1311003R0103 10 0.170
0 1 B7-30-01-F-03 GJL1311003R0013 10 0.170
110 … 127 110 … 127 1 0 B7-30-10-F-84 GJL1311003R8104 10 0.170
0 1 B7-30-01-F-84 GJL1311003R8014 10 0.170
220 … 240 220 … 240 1 0 B7-30-10-F-80 GJL1311003R8100 10 0.170
0 1 B7-30-01-F-80 GJL1311003R8010 10 0.170
380 … 415 380 … 415 1 0 B7-30-10-F-85 GJL1311003R8105 10 0.170
0 1 B7-30-01-F-85 GJL1311003R8015 10 0.170
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212002F0011

4.5 0.18" 2CDC102033C0201
B6, B7
