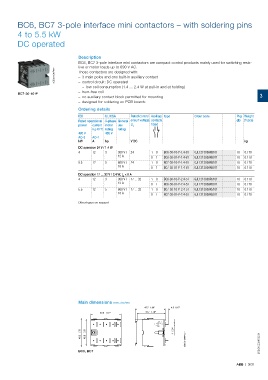

BC6, BC7 3-pole interface mini contactors – with soldering pins
4 to 5.5 kW

DC operated

Description
BC6, BC7 3-pole interface mini contactors are compact control products mainly used for switching resis-
tive or motor loads up to 690 V AC.
2CDC211030F0011 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: DC operated
– low coil consumption (1.4 ... 2.4 W at pull-in and at holding)
– hum-free coil
BC7-30-10-P
– no auxiliary contact block permitted for mounting 3
– designed for soldering on PCB boards
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
DC operation 24 V / 1.4 W
4 12 3 300 V / 24 1 0 BC6-30-10-P-1.4-81 GJL1213009R8101 10 0.170
12 A 0 1 BC6-30-01-P-1.4-81 GJL1213009R8011 10 0.170
5.5 12 5 600 V / 24 1 0 BC7-30-10-P-1.4-81 GJL1313009R8101 10 0.170
16 A 0 1 BC7-30-01-P-1.4-81 GJL1313009R8011 10 0.170
DC operation 17 … 32 V / 2.4 W, I < 8 A
th
4 12 3 300 V / 17 ... 32 1 0 BC6-30-10-P-2.4-51 GJL1213009R5101 10 0.170
12 A 0 1 BC6-30-01-P-2.4-51 GJL1213009R5011 10 0.170
5.5 12 5 600 V / 17 ... 32 1 0 BC7-30-10-P-2.4-51 GJL1313009R5101 10 0.170
16 A 0 1 BC7-30-01-P-2.4-51 GJL1313009R5011 10 0.170

Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04" 2CDC212003F0011

BC6, BC7 2CDC102029C0201
