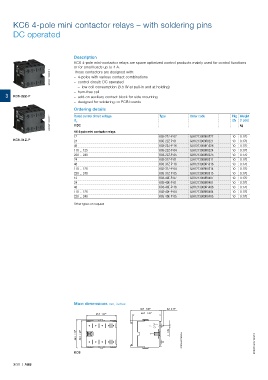

KC6 4-pole mini contactor relays – with soldering pins
DC operated

Description
KC6 4-pole mini-contactor relays are space optimized control products mainly used for control functions
or for small loads up to 4 A.
2CDC211025F0011 – 4-poles with various contact combinations
These contactors are designed with:
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
3 KC6-22Z-P – add-on auxiliary contact block for side mounting
– designed for soldering on PCB boards
Ordering details
2CDC211023F0011 Rated control circuit voltage Type Order code Pkg Weight
qty
(1 pce)
U
C
V DC
kg
K6 4-pole mini contactor relays
12 KC6-22Z-P-07 GJH1213009R0227 10 0.170
KC6-31Z-P 24 KC6-22Z-P-01 GJH1213009R0221 10 0.170
48 KC6-22Z-P-16 GJH1213009R1226 10 0.170
110 ... 125 KC6-22Z-P-04 GJH1213009R0224 10 0.170
220 ... 240 KC6-22Z-P-05 GJH1213009R0225 10 0.170
24 KC6-31Z-P-01 GJH1213009R0311 10 0.170
48 KC6-31Z-P-16 GJH1213009R1316 10 0.170
110 ... 125 KC6-31Z-P-04 GJH1213009R0314 10 0.170
220 ... 240 KC6-31Z-P-05 GJH1213009R0315 10 0.170
12 KC6-40E-P-07 GJH1213009R0407 10 0.170
24 KC6-40E-P-01 GJH1213009R0401 10 0.170
48 KC6-40E-P-16 GJH1213009R1406 10 0.170
110 ... 125 KC6-40E-P-04 GJH1213009R0404 10 0.170
220 ... 240 KC6-40E-P-05 GJH1213009R0405 10 0.170
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04" 2CDC212003F0011

KC6 2CDC102031C0201
