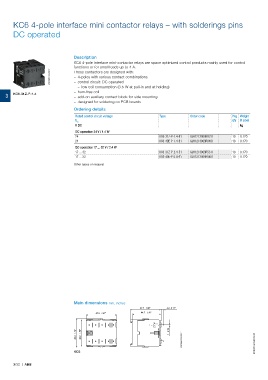

KC6 4-pole interface mini contactor relays – with solderings pins
DC operated

Description
KC6 4-pole interface mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211023F0011 – 4-poles with various contact combinations
These contactors are designed with:
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
3 KC6-31Z-P-1.4 – add-on auxiliary contact block for side mounting
– designed for soldering on PCB boards
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C qty (1 pce)
V DC kg
DC operation 24 V / 1.4 W
24 KC6-31Z-P-1.4-81 GJH1213009R8311 10 0.170
24 KC6-40E-P-1.4-81 GJH1213009R8401 10 0.170
DC operation 17 ... 32 V / 2.4 W
17 ... 32 KC6-31Z-P-2.4-51 GJH1213009R5311 10 0.170
17 ... 32 KC6-40E-P-2.4-51 GJH1213009R5401 10 0.170
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04" 2CDC212003F0011

KC6 2CDC102032C0201
