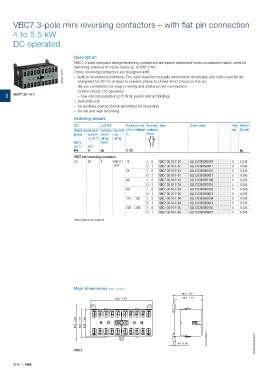

VBC7 3-pole mini reversing contactors – with flat pin connection
4 to 5.5 kW

DC operated

Description
VBC7 3-pole compact design reversing contactors are space optimized control products mainly used for
switching resistive or motor loads up to 690 V AC.
2CDC211004F0011 – built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
These reversing contactors are designed with:
energised for 50 ms at least to prevent phase to phase short circuit on the arc
– flat pin connection for plug-in wiring and shake proven connection
– control circuit: DC operated
3 VBC7-30-10-F – low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
– no auxiliary contact block permitted for mounting
– for rail and wall mounting
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC7 mini reversing contactors
5.5 20 5 600 V / 12 1 0 VBC7-30-10-F-07 GJL1313903R0107 5 0.345
16 A 0 1 VBC7-30-01-F-07 GJL1313903R0017 5 0.345
24 1 0 VBC7-30-10-F-01 GJL1313903R0101 5 0.345
0 1 VBC7-30-01-F-01 GJL1313903R0011 5 0.345
48 1 0 VBC7-30-10-F-16 GJL1313903R1106 5 0.345
0 1 VBC7-30-01-F-16 GJL1313903R1016 5 0.345
60 1 0 VBC7-30-10-F-03 GJL1313903R0103 5 0.345
0 1 VBC7-30-01-F-03 GJL1313903R0013 5 0.345
110 ... 125 1 0 VBC7-30-10-F-04 GJL1313903R0104 5 0.345
0 1 VBC7-30-01-F-04 GJL1313903R0014 5 0.345
220 … 240 1 0 VBC7-30-10-F-05 GJL1313903R0105 5 0.345
0 1 VBC7-30-01-F-05 GJL1313903R0015 5 0.345
Other types on request

Main dimensions mm, inches
46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

2CDC212006F0011

4.5 0.18" 2CDC102036C0201
VBC7
