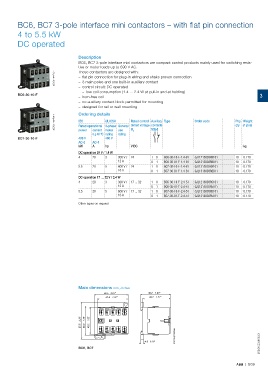

BC6, BC7 3-pole interface mini contactors – with flat pin connection
4 to 5.5 kW

DC operated

Description
BC6, BC7 3-pole interface mini contactors are compact control products mainly used for switching resis-
tive or motor loads up to 690 V AC.
These contactors are designed with:
2CDC211041F0011 – flat pin connection for plug-in wiring and shake proven connection
– 3 main poles and one built-in auxiliary contact
– control circuit: DC operated
– low coil consumption (1.4 ... 2.4 W at pull-in and at holding)
BC6-30-10-F 3
– hum-free coil
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
Ordering details
2CDC211024F0011 IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
circuit voltage contacts
qty
(1 pce)
Rated operational 3-phase General
power
current
rating
rating
θ ≤ 40 °C motor use U C fitted
BC7-30-10-F 400 V 480 V
AC-3 AC-1
kW A hp V DC kg
DC operation 24 V / 1.4 W
4 20 3 300 V / 24 1 0 BC6-30-10-F-1.4-81 GJL1213003R8101 10 0.170
12 A 0 1 BC6-30-01-F-1.4-81 GJL1213003R8011 10 0.170
5.5 20 5 600 V / 24 1 0 BC7-30-10-F-1.4-81 GJL1313003R8101 10 0.170
16 A 0 1 BC7-30-01-F-1.4-81 GJL1313003R8011 10 0.170
DC operation 17 … 32 V / 2.4 W
4 20 3 300 V / 17 ... 32 1 0 BC6-30-10-F-2.4-51 GJL1213003R5101 10 0.170
12 A 0 1 BC6-30-01-F-2.4-51 GJL1213003R5011 10 0.170
5.5 20 5 600 V / 17 ... 32 1 0 BC7-30-10-F-2.4-51 GJL1313003R5101 10 0.170
16 A 0 1 BC7-30-01-F-2.4-51 GJL1313003R5011 10 0.170
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212002F0011

4.5 0.18" 2CDC102039C0201
BC6, BC7

ABB | 3/39
