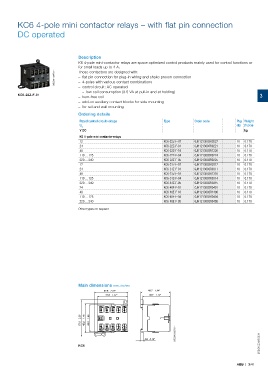

KC6 4-pole mini contactor relays – with flat pin connection
DC operated

Description
K6 4-pole mini-contactor relays are space optimized control products mainly used for control functions or
for small loads up to 4 A.
These contactors are designed with:
2CDC211029F0011 – flat pin connection for plug-in wiring and shake proven connection
– 4-poles with various contact combinations
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
KC6-22Z-F-01 3
– hum-free coil
– add-on auxiliary contact blocks for side mounting
– for rail and wall mounting
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C qty (1 pce)
V DC kg
K6 4-pole mini contactor relays
12 KC6-22Z-F-07 GJH1213003R0227 10 0.170
24 KC6-22Z-F-01 GJH1213003R0221 10 0.170
48 KC6-22Z-F-16 GJH1213003R1226 10 0.170
110 ... 125 KC6-22Z-F-04 GJH1213003R0224 10 0.170
220 ... 240 KC6-22Z-F-05 GJH1213003R0225 10 0.170
12 KC6-31Z-F-07 GJH1213003R0317 10 0.170
24 KC6-31Z-F-01 GJH1213003R0311 10 0.170
48 KC6-31Z-F-16 GJH1213003R1316 10 0.170
110 ... 125 KC6-31Z-F-04 GJH1213003R0314 10 0.170
220 ... 240 KC6-31Z-F-05 GJH1213003R0315 10 0.170
24 KC6-40E-F-01 GJH1213003R0401 10 0.170
48 KC6-40E-F-16 GJH1213003R1406 10 0.170
110 ... 125 KC6-40E-F-04 GJH1213003R0404 10 0.170
220 ... 240 KC6-40E-F-05 GJH1213003R0405 10 0.170
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212002F0011

4.5 0.18"
KC6 2CDC102041C0201
