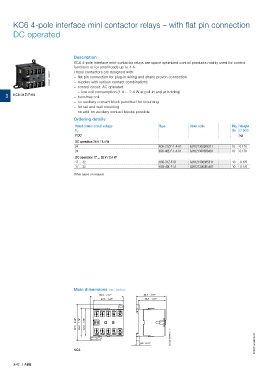

KC6 4-pole interface mini contactor relays – with flat pin connection
DC operated

Description
KC6 4-pole interface mini-contactor relays are space optimized control products mainly used for control
functions or for small loads up to 4 A.
2CDC211033F0011 – flat pin connection for plug-in wiring and shake proven connection
These contactors are designed with:
– 4-poles with various contact combinations
– control circuit: AC operated
– low coil consumption (1.4 ... 2.4 W at pull-in and at holding)
3 KC6-31Z-F-05 – hum-free coil
– no auxiliary contact block permitted for mounting
– for rail and wall mounting
– no add-on auxiliary contact blocks possible
Ordering details
Rated control circuit voltage Type Order code Pkg Weight
U C qty (1 pce)
V DC kg
DC operation 24 V / 1.4 W
24 KC6-31Z-F-1.4-81 GJH1213003R8311 10 0.170
24 KC6-40E-F-1.4-81 GJH1213003R8401 10 0.170
DC operation 17 ... 32 V / 2.4 W
17 ... 32 KC6-31Z-F-51 GJH1213003R5311 10 0.170
17 ... 32 KC6-40E-F-51 GJH1213003R5401 10 0.170
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212002F0011

4.5 0.18" 2CDC102045C0201
KC6

3/42 | ABB
