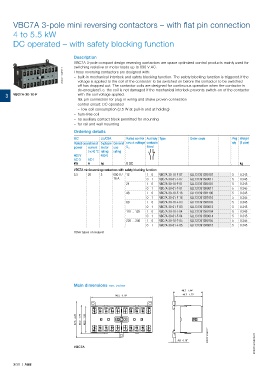

Page 100 - Motor_protection_and_control_Manual_motor_starters_ contactors

VBC7A 3-pole mini reversing contactors – with flat pin connection
4 to 5.5 kW

DC operated – with safety blocking function

Description
VBC7A 3-pole compact design reversing contactors are space optimized control products mainly used for
switching resistive or motor loads up to 690 V AC.
2CDC211002F0011 – built-in mechanical interlock and safety blocking function. The safety blocking function is triggered if the
These reversing contactors are designed with:
voltage is applied to the coil of the contactor to be switched on before the contactor to be switched
off has dropped out. The contactor coils are designed for continuous operation when the contactor is
de-energised i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor
3 VBC7A-30-10-F with the coil voltage applied.
– flat pin connection for plug-in wiring and shake proven connection
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
– no auxiliary contact block permitted for mounting
– for rail and wall mounting
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
VBC7A mini reversing contactors with safety blocking function
5.5 20 5 600 V / 12 1 0 VBC7A-30-10-F-07 GJL1313913R0107 5 0.345
16 A 0 1 VBC7A-30-01-F-07 GJL1313913R0017 5 0.345
24 1 0 VBC7A-30-10-F-01 GJL1313913R0101 5 0.345
0 1 VBC7A-30-01-F-01 GJL1313913R0011 5 0.345
48 1 0 VBC7A-30-10-F-16 GJL1313913R1106 5 0.345
0 1 VBC7A-30-01-F-16 GJL1313913R1016 5 0.345
60 1 0 VBC7A-30-10-F-03 GJL1313913R0103 5 0.345
0 1 VBC7A-30-01-F-03 GJL1313913R0013 5 0.345
110 ... 125 1 0 VBC7A-30-10-F-04 GJL1313913R0104 5 0.345
0 1 VBC7A-30-01-F-04 GJL1313913R0014 5 0.345
220 … 240 1 0 VBC7A-30-10-F-05 GJL1313913R0105 5 0.345
0 1 VBC7A-30-01-F-05 GJL1313913R0015 5 0.345
Other types on request

Main dimensions mm, inches
46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

2CDC212006F0011

4.5 0.18"
VBC7A 2CDC102038C0201

3/38 | ABB
