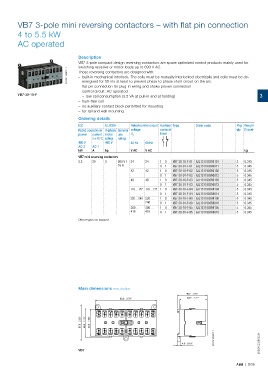

Page 97 - Motor_protection_and_control_Manual_motor_starters_ contactors

VB7 3-pole mini reversing contactors – with flat pin connection
4 to 5.5 kW

AC operated

Description
VB7 3-pole compact design reversing contactors are space optimized control products mainly used for
switching resistive or motor loads up to 690 V AC.
2CDC211005F0011 – built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
These reversing contactors are designed with:
energised for 50 ms at least to prevent phase to phase short circuit on the arc.
– flat pin connection for plug-in wiring and shake proven connection
– control circuit: AC operated
VB7-30-10-F – low coil consumption (3.5 VA at pull-in and at holding) 3
– hum-free coil
– no auxiliary contact block permitted for mounting
– for rail and wall mounting
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V 50 Hz 60 Hz
AC-3 AC-1
kW A hp V AC V AC kg
VB7 mini reversing contactors
5.5 20 5 600 V / 24 24 1 0 VB7-30-10-F-01 GJL1311903R0101 5 0.345
16 A 0 1 VB7-30-01-F-01 GJL1311903R0011 5 0.345
42 42 1 0 VB7-30-10-F-02 GJL1311903R0102 5 0.345
0 1 VB7-30-01-F-02 GJL1311903R0012 5 0.345
48 48 1 0 VB7-30-10-F-03 GJL1311903R0103 5 0.345
0 1 VB7-30-01-F-03 GJL1311903R0013 5 0.345
110 … 127 110 … 127 1 0 VB7-30-10-F-84 GJL1311903R8104 5 0.345
0 1 VB7-30-01-F-84 GJL1311903R8014 5 0.345
220 … 240 220 … 1 0 VB7-30-10-F-80 GJL1311903R8100 5 0.345
240 0 1 VB7-30-01-F-80 GJL1311903R8010 5 0.345
380 … 380 … 1 0 VB7-30-10-F-85 GJL1311903R8105 5 0.345
415 415 0 1 VB7-30-01-F-85 GJL1311903R8015 5 0.345
Other types on request

Main dimensions mm, inches
46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"

2CDC212006F0011

4.5 0.18" 2CDC102035C0201
VB7
