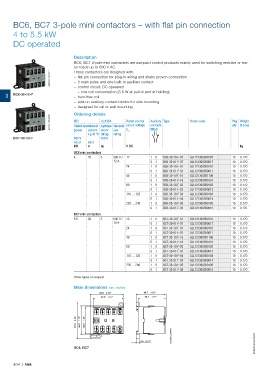

BC6, BC7 3-pole mini contactors – with flat pin connection
4 to 5.5 kW

DC operated

Description
BC6, BC7 3-pole mini contactors are compact control products mainly used for switching resistive or mo-
tor loads up to 690 V AC.
These contactors are designed with:
2CDC211041F0011 – flat pin connection for plug-in wiring and shake proven connection
– 3 main poles and one built-in auxiliary contact
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
3 BC6-30-10-F – hum-free coil
– add-on auxiliary contact blocks for side mounting
– designed for rail or wall mounting
Ordering details
2CDC211024F0011 IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
(1 pce)
qty
circuit voltage
contacts
Rated operational 3-phase General
power
current
rating
rating
θ ≤ 40 °C motor use U C fitted
BC7-30-10-F 400 V 480 V
AC-3 AC-1
kW A hp V DC kg
BC6 mini contactors
4 20 3 300 V / 12 1 0 BC6-30-10-F-07 GJL1213003R0107 10 0.170
12 A 0 1 BC6-30-01-F-07 GJL1213003R0017 10 0.170
24 1 0 BC6-30-10-F-01 GJL1213003R0101 10 0.170
0 1 BC6-30-01-F-01 GJL1213003R0011 10 0.170
48 1 0 BC6-30-10-F-16 GJL1213003R1106 10 0.170
0 1 BC6-30-01-F-16 GJL1213003R1016 10 0.170
60 1 0 BC6-30-10-F-03 GJL1213003R0103 10 0.170
0 1 BC6-30-01-F-03 GJL1213003R0013 10 0.170
110 … 125 1 0 BC6-30-10-F-04 GJL1213003R0104 10 0.170
0 1 BC6-30-01-F-04 GJL1213003R0014 10 0.170
220 … 240 1 0 BC6-30-10-F-05 GJL1213003R0105 10 0.170
0 1 BC6-30-01-F-05 GJL1213003R0015 10 0.170
BC7 mini contactors
5.5 20 5 600 V / 12 1 0 BC7-30-10-F-07 GJL1313003R0107 10 0.170
16 A 0 1 BC7-30-01-F-07 GJL1313003R0017 10 0.170
24 1 0 BC7-30-10-F-01 GJL1313003R0101 10 0.170
0 1 BC7-30-01-F-01 GJL1313003R0011 10 0.170
48 1 0 BC7-30-10-F-16 GJL1313003R1106 10 0.170
0 1 BC7-30-01-F-16 GJL1313003R1016 10 0.170
60 1 0 BC7-30-10-F-03 GJL1313003R0103 10 0.170
0 1 BC7-30-01-F-03 GJL1313003R0013 10 0.170
110 … 125 1 0 BC7-30-10-F-04 GJL1313003R0104 10 0.170
0 1 BC7-30-01-F-04 GJL1313003R0014 10 0.170
220 … 240 1 0 BC7-30-10-F-05 GJL1313003R0105 10 0.170
0 1 BC7-30-01-F-05 GJL1313003R0015 10 0.170
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212002F0011

4.5 0.18" 2CDC102034C0201
BC6, BC7
