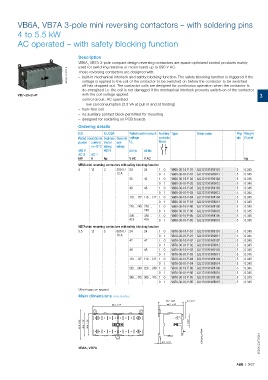

VB6A, VB7A 3-pole mini reversing contactors – with soldering pins
4 to 5.5 kW

AC operated – with safety blocking function

Description
VB6A, VB7A 3-pole compact design reversing contactors are space optimized control products mainly
used for switching resistive or motor loads up to 690 V AC.
2CDC211013F0010 – built-in mechanical interlock and safety blocking function. The safety blocking function is triggered if the
These reversing contactors are designed with:
voltage is applied to the coil of the contactor to be switched on before the contactor to be switched
off has dropped out. The contactor coils are designed for continuous operation when the contactor is
de-energised i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor
VB7-30-01-P with the coil voltage applied. 3
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
– no auxiliary contact block permitted for mounting
– designed for soldering on PCB boards
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V 50 Hz 60 Hz
AC-3 AC-1
kW A hp V AC V AC kg
VB6A mini reversing contactors with safety blocking function
4 12 3 300 V / 24 24 1 0 VB6A-30-10-P-01 GJL1211919R0101 5 0.345
12 A 0 1 VB6A-30-01-P-01 GJL1211919R0011 5 0.345
42 42 1 0 VB6A-30-10-P-02 GJL1211919R0102 5 0.345
0 1 VB6A-30-01-P-02 GJL1211919R0012 5 0.345
48 48 1 0 VB6A-30-10-P-03 GJL1211919R0103 5 0.345
0 1 VB6A-30-01-P-03 GJL1211919R0013 5 0.345
110 … 127 110 … 127 1 0 VB6A-30-10-P-84 GJL1211919R8104 5 0.345
0 1 VB6A-30-01-P-84 GJL1211919R8014 5 0.345
220 … 240 220 … 1 0 VB6A-30-10-P-80 GJL1211919R8100 5 0.345
240 0 1 VB6A-30-01-P-80 GJL1211919R8010 5 0.345
380 … 380 … 1 0 VB6A-30-10-P-85 GJL1211919R8105 5 0.345
415 415 0 1 VB6A-30-01-P-85 GJL1211919R8015 5 0.345
VB7A mini reversing contactors with safety blocking function
5.5 12 5 600 V / 24 24 1 0 VB7A-30-10-P-01 GJL1311919R0101 5 0.345
16 A 0 1 VB7A-30-01-P-01 GJL1311919R0011 5 0.345
42 42 1 0 VB7A-30-10-P-02 GJL1311919R0102 5 0.345
0 1 VB7A-30-01-P-02 GJL1311919R0012 5 0.345
48 48 1 0 VB7A-30-10-P-03 GJL1311919R0103 5 0.345
0 1 VB7A-30-01-P-03 GJL1311919R0013 5 0.345
110 … 127 110 … 127 1 0 VB7A-30-10-P-84 GJL1311919R8104 5 0.345
0 1 VB7A-30-01-P-84 GJL1311919R8014 5 0.345
220 … 240 220 … 240 1 0 VB7A-30-10-P-80 GJL1311919R8100 5 0.345
0 1 VB7A-30-01-P-80 GJL1311919R8010 5 0.345
380 … 415 380 … 415 1 0 VB7A-30-10-P-85 GJL1311919R8105 5 0.345
0 1 VB7A-30-01-P-85 GJL1311919R8015 5 0.345
Other types on request
Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
96.2 3.79" 44.7 1.76"

57.5 2.26" 45.2 1.78" 42.2 1.66" 1 0.04"

2CDC212007F0011

4.5 0.18" 2CDC102027C0201
VB6A, VB7A

ABB | 3/27
