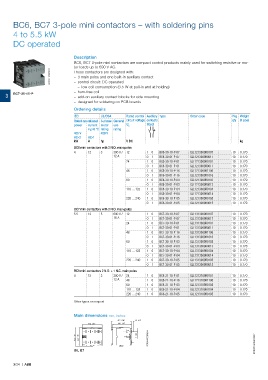

BC6, BC7 3-pole mini contactors – with soldering pins
4 to 5.5 kW

DC operated

Description
BC6, BC7 3-pole mini contactors are compact control products mainly used for switching resistive or mo-
tor loads up to 690 V AC.
2CDC211030F0011 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
3 BC7-30-10-P – add-on auxiliary contact blocks for side mounting
– designed for soldering on PCB boards
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational 3-phase General circuit voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V
AC-3 AC-1
kW A hp V DC kg
BC6 mini contactors with 3 N.O. main poles
4 12 3 300 V / 12 1 0 BC6-30-10-P-07 GJL1213009R0107 10 0.170
12 A 0 1 BC6-30-01-P-07 GJL1213009R0017 10 0.170
24 1 0 BC6-30-10-P-01 GJL1213009R0101 10 0.170
0 1 BC6-30-01-P-01 GJL1213009R0011 10 0.170
48 1 0 BC6-30-10-P-16 GJL1213009R1106 10 0.170
0 1 BC6-30-01-P-16 GJL1213009R1016 10 0.170
60 1 0 BC6-30-10-P-03 GJL1213009R0103 10 0.170
0 1 BC6-30-01-P-03 GJL1213009R0013 10 0.170
110 … 125 1 0 BC6-30-10-P-04 GJL1213009R0104 10 0.170
0 1 BC6-30-01-P-04 GJL1213009R0014 10 0.170
220 … 240 1 0 BC6-30-10-P-05 GJL1213009R0105 10 0.170
0 1 BC6-30-01-P-05 GJL1213009R0015 10 0.170
BC7 mini contactors with 3 N.O. main poles
5.5 12 5 600 V / 12 1 0 BC7-30-10-P-07 GJL1313009R0107 10 0.170
16 A 0 1 BC7-30-01-P-07 GJL1313009R0017 10 0.170
24 1 0 BC7-30-10-P-01 GJL1313009R0101 10 0.170
0 1 BC7-30-01-P-01 GJL1313009R0011 10 0.170
48 1 0 BC7-30-10-P-16 GJL1313009R1106 10 0.170
0 1 BC7-30-01-P-16 GJL1313009R1016 10 0.170
60 1 0 BC7-30-10-P-03 GJL1313009R0103 10 0.170
0 1 BC7-30-01-P-03 GJL1313009R0013 10 0.170
110 … 125 1 0 BC7-30-10-P-04 GJL1313009R0104 10 0.170
0 1 BC7-30-01-P-04 GJL1313009R0014 10 0.170
220 … 240 1 0 BC7-30-10-P-05 GJL1313009R0105 10 0.170
0 1 BC7-30-01-P-05 GJL1313009R0015 10 0.170
BC6 mini contactors 2 N.O. + 1 N.C. main poles
4 12 3 300 V / 24 1 0 BC6-21-10-P-01 GJL1213109R0101 10 0.170
12 A 48 1 0 BC6-21-10-P-16 GJL1213109R1106 10 0.170
60 1 0 BC6-21-10-P-03 GJL1213109R0103 10 0.170
110 … 125 1 0 BC6-21-10-P-04 GJL1213109R0104 10 0.170
220 … 240 1 0 BC6-21-10-P-05 GJL1213109R0105 10 0.170
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"
2CDC212003F0011 2CDC102024C0201
45.2 1.78" 42.2 1.66" 1 0.04"

B6, B7
