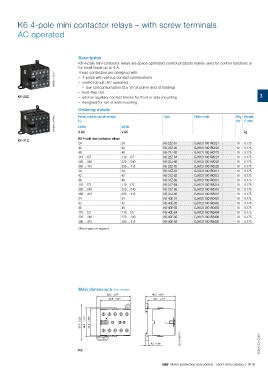

K6 4-pole mini contactor relays – with screw terminals
AC operated

Description
K6 4-pole mini-contactor relays are space optimized control products mainly used for control functions or
for small loads up to 4 A.
These contactors are designed with:
2CDC211012F0011 – 4-poles with various contact combinations
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
K6-22Z – add-on auxiliary contact blocks for front or side mounting 3
– designed for rail or wall mounting
Ordering details Type Order code Pkg Weight
Rated control circuit voltage
2CDC211004F0010 U C 60 Hz qty (1 pce)
50 Hz
V AC
K6 4-pole mini contactor relays V AC kg
K6-31Z
24 24 K6-22Z-01 GJH1211001R0221 10 0.175
42 42 K6-22Z-02 GJH1211001R0222 10 0.175
48 48 K6-22Z-03 GJH1211001R0223 10 0.175
110 ...127 110 ...127 K6-22Z-84 GJH1211001R8224 10 0.175
220 ... 240 220 ... 240 K6-22Z-80 GJH1211001R8220 10 0.175
380 ... 415 380 ... 415 K6-22Z-85 GJH1211001R8225 10 0.175
24 24 K6-31Z-01 GJH1211001R0311 10 0.175
42 42 K6-31Z-02 GJH1211001R0312 10 0.175
48 48 K6-31Z-03 GJH1211001R0313 10 0.175
110 ...127 110 ...127 K6-31Z-84 GJH1211001R8314 10 0.175
220 ... 240 220 ... 240 K6-31Z-80 GJH1211001R8310 10 0.175
380 ... 415 380 ... 415 K6-31Z-85 GJH1211001R8315 10 0.175
24 24 K6-40E-01 GJH1211001R0401 10 0.175
42 42 K6-40E-02 GJH1211001R0402 10 0.175
48 48 K6-40E-03 GJH1211001R0403 10 0.175
110 ...127 110 ...127 K6-40E-84 GJH1211001R8404 10 0.175
220 ... 240 220 ... 240 K6-40E-80 GJH1211001R8400 10 0.175
380 ... 415 380 ... 415 K6-40E-85 GJH1211001R8405 10 0.175
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18" 2CDC102011C0201
K6
