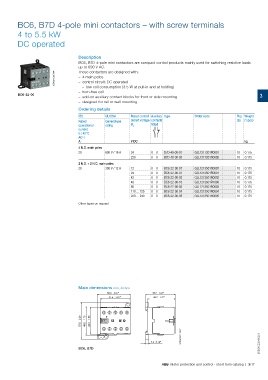

Page 79 - Motor_protection_and_control_Manual_motor_starters_ contactors

BC6, B7D 4-pole mini contactors – with screw terminals
4 to 5.5 kW

DC operated

Description
BC6, B7D 4-pole mini contactors are compact control products mainly used for switching resistive loads
up to 690 V AC.
These contactors are designed with:
2CDC211032F0011 – 4 main poles
– control circuit: DC operated
– low coil consumption (3.5 W at pull-in and at holding)
– hum-free coil
BC6-22-00 3
– add-on auxiliary contact blocks for front or side mounting
– designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated General use circuit voltage contacts qty (1 pce)
operational rating U C fitted
current
θ ≤ 40 °C
AC-1
A V DC kg
4 N.O. main poles
20 600 V / 16 A 24 0 0 B7D-40-00-01 GJL1317201R0001 10 0.175
220 0 0 B7D-40-00-05 GJL1317201R0005 10 0.175
2 N.O. + 2 N.C. main poles
20 300 V / 12 A 12 0 0 BC6-22-00-07 GJL1213501R0007 10 0.175
24 0 0 BC6-22-00-01 GJL1213501R0001 10 0.175
42 0 0 BC6-22-00-02 GJL1213501R0002 10 0.175
48 0 0 BC6-22-00-16 GJL1213501R1006 10 0.175
60 0 0 BC6-22-00-03 GJL1213501R0003 10 0.175
110 ... 125 0 0 BC6-22-00-04 GJL1213501R0004 10 0.175
220 ... 240 0 0 BC6-22-00-05 GJL1213501R0005 10 0.175
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18" 2CDC102021C0201
BC6, B7D

ABB Motor protection and control - short form catalog | 3/17
