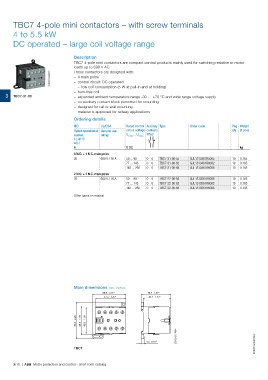

TBC7 4-pole mini contactors – with screw terminals
4 to 5.5 kW

DC operated – large coil voltage range

Description
TBC7 4-pole mini contactors are compact control products mainly used for switching resistive or motor
loads up to 690 V AC.
These contactors are designed with:
2CDC211026F0011 – 4 main poles
– control circuit: DC operated
– low coil consumption (5 W at pull-in and at holding)
– hum-free coil
3 TBC7-31-00 – expanded ambient temperature range -30 … +70 °C and wide range voltage supply
– no auxiliary contact block permitted for mounting
– designed for rail or wall mounting
– material is approved for railway applications
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
Rated operational General use circuit voltage contacts qty (1 pce)
current rating U C min ... U C max fitted
θ ≤ 40 °C
AC-1
A V DC kg
3 N.O. + 1 N.C. main poles
20 600 V / 16 A 50 ... 90 0 0 TBC7-31-00-55 GJL1313461R5005 10 0.185
77 ... 143 0 0 TBC7-31-00-62 GJL1313461R6002 10 0.185
140 ... 260 0 0 TBC7-31-00-68 GJL1313461R6008 10 0.185
2 N.O. + 2 N.C. main poles
20 600 V / 16 A 50 ... 90 0 0 TBC7-22-00-55 GJL1313561R5005 10 0.185
77 ... 143 0 0 TBC7-22-00-62 GJL1313561R6002 10 0.185
140 ... 260 0 0 TBC7-22-00-68 GJL1313561R6008 10 0.185
Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18" 2CDC102022C0201
TBC7

3/18 | ABB Motor protection and control - short form catalog
