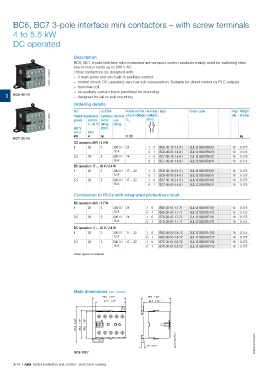

BC6, BC7 3-pole interface mini contactors – with screw terminals
4 to 5.5 kW

DC operated

Description
BC6, BC7 3-pole interface mini contactors are compact control products mainly used for switching resis-
tive or motor loads up to 690 V AC.
2CDC211040F0011 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: DC operated, very low coil consumption. Suitable for direct control by PLC outputs
– hum-free coil
– no auxiliary contact block permitted for mounting
3 BC6-30-10 – designed for rail or wall mounting
Ordering details
IEC UL/CSA Rated control Auxiliary Type Order code Pkg Weight
2CDC211013F0011 power current motor use U C fitted
(1 pce)
qty
circuit voltage contacts
Rated operational 3-phase General
rating
rating
θ ≤ 40 °C
400 V
AC-3 AC-1 480 V
kW A hp V DC kg
BC7-30-10
DC operation 24 V / 1.4 W
4 20 3 300 V / 24 1 0 BC6-30-10-1.4-81 GJL1213001R8101 10 0.175
12 A 0 1 BC6-30-01-1.4-81 GJL1213001R8011 10 0.175
5.5 20 5 600 V / 24 1 0 BC7-30-10-1.4-81 GJL1313001R8101 10 0.175
16 A 0 1 BC7-30-01-1.4-81 GJL1313001R8011 10 0.175
DC operation 17 … 32 V / 2.4 W
4 20 3 300 V / 17 ... 32 1 0 BC6-30-10-2.4-51 GJL1213001R5101 10 0.175
12 A 0 1 BC6-30-01-2.4-51 GJL1213001R5011 10 0.175
5.5 20 5 600 V / 17 ... 32 1 0 BC7-30-10-2.4-51 GJL1313001R5101 10 0.175
16 A 0 1 BC7-30-01-2.4-51 GJL1313001R5011 10 0.175
Connection to PLCs with integrated protective circuit

DC operation 24 V / 1.7 W
4 20 3 300 V / 24 1 0 B6S-30-10-1.7-71 GJL1213001R7101 10 0.175
12 A 0 1 B6S-30-01-1.7-71 GJL1213001R7011 10 0.175
5.5 20 5 600 V / 24 1 0 B7S-30-10-1.7-71 GJL1313001R7101 10 0.175
16 A 0 1 B7S-30-01-1.7-71 GJL1313001R7011 10 0.175
DC operation 17 … 32 V / 2.8 W
4 20 3 300 V / 17 ... 32 1 0 B6S-30-10-2.8-72 GJL1213001R7102 10 0.175
12 A 0 1 B6S-30-01-2.8-72 GJL1213001R7012 10 0.175
5.5 20 5 600 V / 17 ... 32 1 0 B7S-30-10-2.8-72 GJL1313001R7102 10 0.175
16 A 0 1 B7S-30-01-2.8-72 GJL1313001R7012 10 0.175

Other types on request

Main dimensions mm, inches
52.5 2.07" 46.7 1.84"
47.5 1.87" 43.7 1.72"

2.26" 1.78" 1.66"
57.5 45.2 42.2
2CDC212001F0011

4.5 0.18" 2CDC102010C0201
BC6, BC7

3/14 | ABB Motor protection and control - short form catalog
