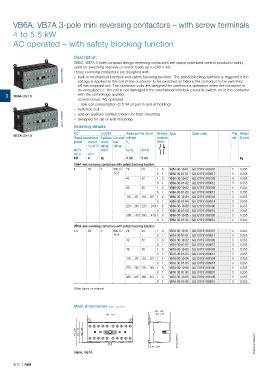

Page 74 - Motor_protection_and_control_Manual_motor_starters_ contactors

VB6A, VB7A 3-pole mini reversing contactors – with screw terminals
4 to 5.5 kW

AC operated – with safety blocking function

Description
VB6A, VB7A 3-pole compact design reversing contactors are space optimized control products mainly
used for switching resistive or motor loads up to 690 V AC.
2CDC211037F0011 These reversing contactors are designed with:
– built-in mechanical interlock and safety blocking function. The safety blocking function is triggered if the
voltage is applied to the coil of the contactor to be switched on before the contactor to be switched
off has dropped out. The contactor coils are designed for continuous operation when the contactor is
de-energised i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor
3 VB6A-30-10 with the coil voltage applied.
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
2CDC211008F0011 Ordering details
– add-on auxiliary contact blocks for front mounting
– designed for rail or wall mounting

IEC UL/CSA Rated control circuit Auxiliary Type Order code Pkg Weight
VB7A-30-10
Rated operational 3-phase General voltage contacts qty (1 pce)
power current motor use U C fitted
θ ≤ 40 °C rating rating
400 V 480 V 50 Hz 60 Hz
AC-3 AC-1
kW A hp V AC V AC kg
VB6A mini reversing contactors with safety blocking function
4 20 3 300 V / 24 24 1 0 VB6A-30-10-01 GJL1211911R0101 5 0.355
12 A 0 1 VB6A-30-01-01 GJL1211911R0011 5 0.355
42 42 1 0 VB6A-30-10-02 GJL1211911R0102 5 0.355
0 1 VB6A-30-01-02 GJL1211911R0012 5 0.355
48 48 1 0 VB6A-30-10-03 GJL1211911R0103 5 0.355
0 1 VB6A-30-01-03 GJL1211911R0013 5 0.355
110 … 127 110 … 127 1 0 VB6A-30-10-84 GJL1211911R8104 5 0.355
0 1 VB6A-30-01-84 GJL1211911R8014 5 0.355
220 … 240 220 … 240 1 0 VB6A-30-10-80 GJL1211911R8100 5 0.355
0 1 VB6A-30-01-80 GJL1211911R8010 5 0.355
380 … 415 380 … 415 1 0 VB6A-30-10-85 GJL1211911R8105 5 0.355
0 1 VB6A-30-01-85 GJL1211911R8015 5 0.355
VB7A mini reversing contactors with safety blocking function
5.5 20 5 600 V / 24 24 1 0 VB7A-30-10-01 GJL1311911R0101 5 0.355
16 A 0 1 VB7A-30-01-01 GJL1311911R0011 5 0.355
42 42 1 0 VB7A-30-10-02 GJL1311911R0102 5 0.355
0 1 VB7A-30-01-02 GJL1311911R0012 5 0.355
48 48 1 0 VB7A-30-10-03 GJL1311911R0103 5 0.355
0 1 VB7A-30-01-03 GJL1311911R0013 5 0.355
110 … 127 110 … 127 1 0 VB7A-30-10-84 GJL1311911R8104 5 0.355
0 1 VB7A-30-01-84 GJL1311911R8014 5 0.355
220 … 240 220 … 240 1 0 VB7A-30-10-80 GJL1311911R8100 5 0.355
0 1 VB7A-30-01-80 GJL1311911R8010 5 0.355
380 … 415 380 … 415 1 0 VB7A-30-10-85 GJL1311911R8105 5 0.355
0 1 VB7A-30-01-85 GJL1311911R8015 5 0.355
Other types on request

Main dimensions mm, inches
46.7 1.84"
96.2 3.79" 43.7 1.72"

57.5 2.26" 45.2 1.78" 42.2 1.66"
2CDC212005F0011

4.5 0.18" 2CDC102018C0201
VB6A, VB7A
