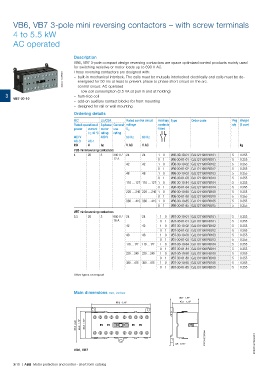

P. 72

VB6, VB7 3-pole mini reversing contactors – with screw terminals
       4 to 5.5 kW

       AC operated


                                  Description
                                  VB6, VB7 3-pole compact design reversing contactors are space optimized control products mainly used
                                  for switching resistive or motor loads up to 690 V AC.
                                  These reversing contactors are designed with:
                                      2CDC211006F0011    – built-in mechanical interlock. The coils must be mutually interlocked electrically and coils must be de-
                                    energised for 50 ms at least to prevent phase to phase short circuit on the arc.
                                     – control circuit: AC operated
                                      – low coil consumption (3.5 VA at pull-in and at holding)
    3                                – hum-free coil
       VB7-30-10
                                     – add-on auxiliary contact blocks for front mounting
                                     – designed for rail or wall mounting
                                  Ordering details
                                  IEC         UL/CSA     Rated control circuit   Auxiliary Type   Order code  Pkg  Weight
                                  Rated operational 3-phase  General   voltage  contacts                qty  (1 pce)
                                  power  current   motor   use    U C  fitted
                                        θ ≤ 40 °C   rating  rating
                                  400 V       480 V      50 Hz  60 Hz
                                  AC-3  AC-1
                                  kW    A     hp         V AC   V AC                                        kg
                                  VB6 mini reversing contactors
                                  4     20    3    300 V /  24  24     1    0  VB6-30-10-01 GJL1211901R0101  5  0.355
                                                   12 A                0    1  VB6-30-01-01 GJL1211901R0011  5  0.355
                                                         42     42     1    0  VB6-30-10-02 GJL1211901R0102  5  0.355
                                                                       0    1  VB6-30-01-02 GJL1211901R0012  5  0.355
                                                         48     48     1    0  VB6-30-10-03 GJL1211901R0103  5  0.355
                                                                       0    1  VB6-30-01-03 GJL1211901R0013  5  0.355
                                                         110 … 127 110 … 127 1    0  VB6-30-10-84 GJL1211901R8104  5  0.355
                                                                       0    1  VB6-30-01-84 GJL1211901R8014  5  0.355
                                                         220 … 240 220 … 240 1    0  VB6-30-10-80 GJL1211901R8100  5  0.355
                                                                       0    1  VB6-30-01-80 GJL1211901R8010  5  0.355
                                                         380 … 415 380 … 415 1    0  VB6-30-10-85 GJL1211901R8105  5  0.355
                                                                       0    1  VB6-30-01-85 GJL1211901R8015  5  0.355
                                  VB7 mini reversing contactors
                                  5.5   20    5    600 V /  24  24      1    0  VB7-30-10-01 GJL1311901R0101  5  0.355
                                                   16 A                 0    1  VB7-30-01-01 GJL1311901R0011  5  0.355
                                                         42     42      1    0  VB7-30-10-02 GJL1311901R0102  5  0.355
                                                                        0    1  VB7-30-01-02 GJL1311901R0012  5  0.355
                                                         48     48      1    0  VB7-30-10-03 GJL1311901R0103  5  0.355
                                                                        0    1  VB7-30-01-03 GJL1311901R0013  5  0.355
                                                         110 … 127  110 … 127  1    0  VB7-30-10-84 GJL1311901R8104  5  0.355
                                                                        0    1  VB7-30-01-84 GJL1311901R8014  5  0.355
                                                         220 … 240  220 … 240  1    0  VB7-30-10-80 GJL1311901R8100  5  0.355
                                                                        0    1  VB7-30-01-80 GJL1311901R8010  5  0.355
                                                         380 … 415  380 … 415  1    0  VB7-30-10-85 GJL1311901R8105  5  0.355
                                                                        0    1  VB7-30-01-85 GJL1311901R8015  5  0.355

                                  Other types on request


                                  Main dimensions mm, inches
                                                                                 46.7   1.84"
                                                     96.2   3.79"                43.7   1.72"



                                   57.5   2.26"  45.2   1.78"  42.2   1.66"

                                                                                            2CDC212005F0011


                                                                               4.5   0.18"                        2CDC102016C0201
                                  VB6, VB7
