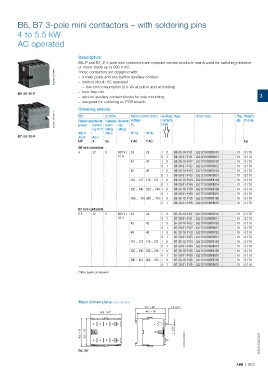

Page 85 - Motor_protection_and_control_Manual_motor_starters_ contactors

B6, B7 3-pole mini contactors – with soldering pins
4 to 5.5 kW

AC operated

Description
B6..P and B7..P 3-pole mini contactors are compact control products mainly used for switching resistive
or motor loads up to 690 V AC.
2CDC211003F0010 – 3 main poles and one built-in auxiliary contact
These contactors are designed with:
– control circuit: AC operated
– low coil consumption (3.5 VA at pull-in and at holding)
– hum-free coil
B6-30-10-P
– add-on auxiliary contact blocks for side mounting 3
– designed for soldering on PCB boards
Ordering details
2CDC211011F0011 IEC current UL/CSA use Rated control circuit Auxiliary Type Order code Pkg Weight
voltage
qty
(1 pce)
contacts
Rated operational 3-phase General
fitted
U
power
motor
C
480 V
400 V θ ≤ 40 °C rating rating 50 Hz 60 Hz
B7-30-10-P AC-3 AC-1
kW A hp V AC V AC kg
B6 mini contactors
4 12 3 300 V / 24 24 1 0 B6-30-10-P-01 GJL1211009R0101 10 0.170
12 A 0 1 B6-30-01-P-01 GJL1211009R0011 10 0.170
42 42 1 0 B6-30-10-P-02 GJL1211009R0102 10 0.170
0 1 B6-30-01-P-02 GJL1211009R0012 10 0.170
48 48 1 0 B6-30-10-P-03 GJL1211009R0103 10 0.170
0 1 B6-30-01-P-03 GJL1211009R0013 10 0.170
110 … 127 110 … 127 1 0 B6-30-10-P-84 GJL1211009R8104 10 0.170
0 1 B6-30-01-P-84 GJL1211009R8014 10 0.170
220 … 240 220 … 240 1 0 B6-30-10-P-80 GJL1211009R8100 10 0.170
0 1 B6-30-01-P-80 GJL1211009R8010 10 0.170
380 … 415 380 … 415 1 0 B6-30-10-P-85 GJL1211009R8105 10 0.170
0 1 B6-30-01-P-85 GJL1211009R8015 10 0.170
B7 mini contactors
5.5 12 5 600 V / 24 24 1 0 B7-30-10-P-01 GJL1311009R0101 10 0.170
16 A 0 1 B7-30-01-P-01 GJL1311009R0011 10 0.170
42 42 1 0 B7-30-10-P-02 GJL1311009R0102 10 0.170
0 1 B7-30-01-P-02 GJL1311009R0012 10 0.170
48 48 1 0 B7-30-10-P-03 GJL1311009R0103 10 0.170
0 1 B7-30-01-P-03 GJL1311009R0013 10 0.170
110 … 127 110 … 127 1 0 B7-30-10-P-84 GJL1311009R8104 10 0.170
0 1 B7-30-01-P-84 GJL1311009R8014 10 0.170
220 … 240 220 … 240 1 0 B7-30-10-P-80 GJL1311009R8100 10 0.170
0 1 B7-30-01-P-80 GJL1311009R8010 10 0.170
380 … 415 380 … 415 1 0 B7-30-10-P-85 GJL1311009R8105 10 0.170
0 1 B7-30-01-P-85 GJL1311009R8015 10 0.170
Other types on request

Main dimensions mm, inches
47.7 1.88" 4.3 0.17"
47.5 1.87" 44.7 1.76"

45.2 1.78" 42.2 1.66" 1 0.04" 2CDC212003F0011

B6, B7 2CDC102023C0201

ABB | 3/23
