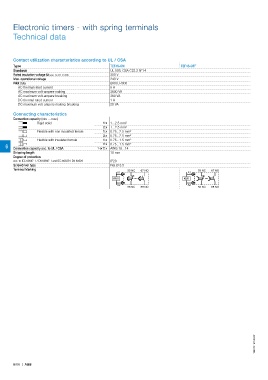

Electronic timers - with spring terminals

Technical data

Contact utilization characteristics according to UL / CSA
Types TEF4S-ON TEF4S-OFF
Standards UL 508, CSA C22.2 N°14
Rated insulation voltage Ui acc. to UL / CSA 300 V
Max. operational voltage 240 V
Pilot duty B300, R300
AC thermal rated current 5 A
AC maximum volt-ampere making 3600 VA
AC maximum volt-ampere breaking 360 VA
DC thermal rated current 1 A
DC maximum volt-ampere making-breaking 28 VA

Connecting characteristics
Connection capacity (min. ... max.)
Rigid solid 1 x 1...2.5 mm²
2 x 1...2.5 mm²
Flexible with non insulated ferrule 1 x 0.75...2.5 mm²
2 x 0.75...2.5 mm²
Flexible with insulated ferrule 1 x 0.75...1.5 mm²
2 x 0.75...1.5 mm²
6 Connection capacity acc. to UL / CSA 1 or 2 x AWG 18...14
Stripping length 10 mm
Degree of protection
acc. to IEC 60947-1 / EN 60947-1 and IEC 60529 / EN 60529 IP20
Screwdriver type Flat Ø 3.5
Terminal Marking 55 NC 67 NO 55 NC 67 NO
A1 A1
KM1 KM1
A2 A2
56 NC 68 NO 56 NC 68 NO

1SBC101672S0201
