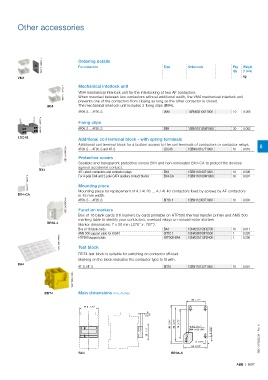

Other accessories

1SBC101128F0014 Ordering details Type Order code Pkg Weight
For contactors
(1 pce)
qty
VM4 kg

1SBC101127F0014 Mechanical interlock unit
VM4 mechanical interlock unit for the interlocking of two AF contactors.
When mounted between two contactors without additional width, the VM4 mechanical interlock unit

The mechanical interlock unit includes 2 fixing clips (BB4).
BB4 prevents one of the contactors from closing as long as the other contactor is closed.
AF09..S ... AF26..S VM4 1SBN030105T1000 10 0.005
1SBC101135F0014 Fixing clips BB4 1SBN110120W1000 50 0.002

AF09..S ... AF26..S

LDC4S
Additional coil terminal block - with spring terminals
Additional coil terminal block for a bottom access to the coil terminals of contactors or contactor relays. 6
1SBC101136F0014 Protective covers
1SBN070157T1000
LDC4S
10
AF09..S ... AF26..S and NF..S
0.010
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices
against accidental contact.
BX4
All 1-stack contactors and contactor relays BX4 1SBN110108T1000 10 0.006
50
BX4-CA
1SBN110109W1000
0.001
For 4-pole CA4 and 2-pole CAT4 auxiliary contact blocks
1SBC101138F0014 Mounting piece
BX4-CA Mounting piece for replacement of A / AL26 ... A / AL40 contactors fixed by screws by AF contactors
in 45 mm width.
1SBC101383F0014 Function markers
BP38-4
0.003
AF09..S ... AF26..S
1SBN112303T1000
10
Box of 16 blank cards (16 markers by card) printable on HTP500 thermal transfer printer and AMS 500
marking table to identify your contactors, overload relays or manual motor starters.
BP38-4 Marker dimensions: 7 x 20 mm (.276" x .787").
Box of 16 blank cards BA4 1SNA235156R2700 16 0.011
AMS 500 support plate for 8 BA4 SPRC 1 1SNA360010R1500 1 1 0.220
1SNC160101F0014 Test block
1SNA235712R2400
HTP500 support plate
0.290
HTP500-BA4
BDT4 test block is suitable for switching on contactor off-load.
Marking on the block indicates the contactor type to fit with.
BA4
AF..S, NF..S BDT4 1SBN110122T1000 10 0.007
1SBC100041V0014
BDT4 Main dimensions mm, inches
45 1.77"
44.8 1.76"
6
0.24"
90 3.54" 80 3.15" 70 2.76" ø 4.2 0.17"

28 1.10" M4 8-32 UNC 5 0.20"

5 0.20" 1SBC101708S0201 - Rev. A
54 2.13"
BX4 BP38-4

ABB | 6/87
