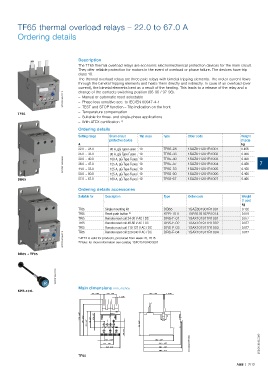

TF65 thermal overload relays – 22.0 to 67.0 A

Ordering details

Description
The TF65 thermal overload relays are economic electromechanical protection devices for the main circuit.
They offer reliable protection for motors in the event of overload or phase failure. The devices have trip
class 10.
The thermal overload relays are three pole relays with bimetal tripping elements. The motor current flows
through the bimetal tripping elements and heats them directly and indirectly. In case of an overload (over
current), the bimetal elements bent as a result of the heating. This leads to a release of the relay and a
change of the contacts switching position (95-96 / 97-98).
2CDC231004F0013 – Manual or automatic reset selectable
– Phase loss sensitive acc. to IEC/EN 60947-4-1
– TEST and STOP function – Trip indication on the front
– Temperature compensation
TF65
– Suitable for three- and single-phase applications
– With ATEX certification 1)
Ordering details
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
22.0 ... 28.0 80 A, gG Type Fuses 10 TF65-28 1SAZ811201R1001 0.456
25.0 ... 33.0 80 A, gG Type Fuses 10 TF65-33 1SAZ811201R1002 0.456
2CDC231003V0015 36.0 ... 47.0 125 A, gG Type Fuses 10 TF65-47 1SAZ811201R1004 0.456 7
1SAZ811201R1003
0.456
100 A, gG Type Fuses 10
TF65-40
30.0 ... 40.0
44.0 ... 53.0
1SAZ811201R1005
125 A, gG Type Fuses 10
TF65-53
0.456
50.0 ... 60.0 125 A, gG Type Fuses 10 TF65-60 1SAZ811201R1006 0.466
DB65 57.0 ... 67.0 160 A, gG Type Fuses 10 TF65-67 1SAZ811201R1007 0.466
Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
TF65 Single mounting kit DB65 1SAZ801901R1001 0.132
TF65 Reset push button 2) KPR-101L 1SFA616162R1014 0.019
TF65 Remote reset coil 24-30 V AC / DC DRS-F-01 1SAX101911R1001 0.077
TF65 Remote reset coil 48-60 V AC / DC DRS-F-02 1SAX101911R1002 0.077
TF65 Remote reset coil 110-127 V AC / DC DRS-F-03 1SAX101911R1003 0.077
1SAX101911R1004
0.077
DRS-F-04
Remote reset coil 220-240 V AC / DC
TF65
2CDC231004V0015 1) 2) Note: for more information see catalog 1SFC151004C0201
ATEX is valid for products, produced from week 26, 2015
DB65 + TF65
1SFC151224F0002

Main dimensions mm, inches
KPR-101L
10.1 0.40" 34.8 1.37" 55.7 2.19" 4 0.08"
7 0.28"

101.4 3.45" 87.7 3.45" 46 1.81" 16.6 0.65"
67.8 2.67" 65 2.56"

2T1 4T2 6T3 18.9 0.74"
10.4 0.41" 83.5 3.29"
37.4 1.47" 102.8 4.05" 2CDC232005F0009 2CDC106063C0201
54.9 2.16" 106.1 4.18"
106.9 4.21"
TF65
ABB | 7/13
