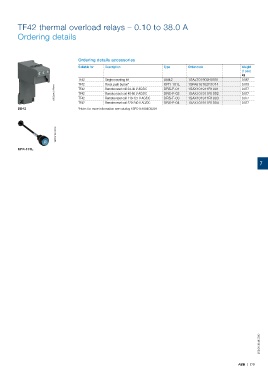

TF42 thermal overload relays – 0.10 to 38.0 A

Ordering details

Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
TF42 Single mounting kit DB42 1SAZ701902R0001 0.087
TF42 Reset push button* KPR-101L 1SFA616162R1014 0.019
2CDC231001F0011 TF42 Remote reset coil 24-30 V AC/DC DRS-F-01 1SAX101911R1001 0.077
DRS-F-02
Remote reset coil 48-60 V AC/DC
1SAX101911R1002
0.077
TF42
TF42
0.077
1SAX101911R1004
TF42 Remote reset coil 110-127 V AC/DC DRS-F-03 1SAX101911R1003 0.077
Remote reset coil 220-240 V AC/DC
DRS-F-04
DB42 *Note: for more information see catalog 1SFC151004C0201
1SFC151224F0002

KPR-101L

7

2CDC106046C0201

ABB | 7/9
