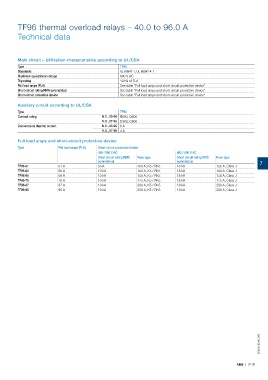

TF96 thermal overload relays – 40.0 to 96.0 A

Technical data

Main circuit – Utilization characteristics according to UL/CSA
Type TF96
Standards UL 60947-1, UL 60947-4-1
Maximum operational voltage 600 V AC
Trip rating 125% of FLA
Full load amps (FLA) See table "Full load amps and short-circuit protective device"
Short-circuit rating RMS symmetrical See table "Full load amps and short-circuit protective device"
Short-circuit protective device See table "Full load amps and short-circuit protective device"
Auxiliary circuit according to UL/CSA
Type TF96
Contact rating N.C., 95-96 B600, Q600
N.O., 97-98 D300, Q600
Conventional thermal current N.C., 95-96 6 A
N.O., 97-98 4 A
Full load amps and short-circuit protective device
Type Full load amps (FLA) Short-circuit protective device
480 / 600 V AC 480 / 600 V AC
Short circuit rating RMS Fuse type Short circuit rating RMS Fuse type
symmetrical symmetrical 7
TF96-51 51 A 5 kA 150 A, K5 / RK5 18 kA 125 A, Class J
TF96-60 60 A 10 kA 150 A, K5 / RK5 18 kA 150 A, Class J
TF96-68 68 A 10 kA 150 A, K5 / RK5 18 kA 150 A, Class J
TF96-78 78 A 10 kA 175 A, K5 / RK5 18 kA 175 A, Class J
TF96-87 87 A 10 kA 200 A, K5 / RK5 18 kA 200 A, Class J
TF96-96 96 A 10 kA 250 A, K5 / RK5 18 kA 200 A, Class J

2CDC106064C0201

ABB | 7/19
