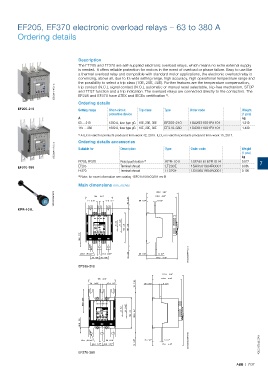

EF205, EF370 electronic overload relays – 63 to 380 A

Ordering details

Description
The EF205 and EF370 are self-supplied electronic overload relays, which means no extra external supply
is needed. It offers reliable protection for motors in the event of overload or phase failure. Easy to use like
a thermal overload relay and compatible with standard motor applications, the electronic overload relay is
convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and
the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation,
2CDC231010V0012 and TEST function and a trip indication. The overload relays are connected directly to the contactors. The
trip contact (N.C.), signal contact (N.O.), automatic or manual reset selectable, trip-free mechanism, STOP
EF205 and EF370 have ATEX and IECEx certification .
1)

EF205-210 Ordering details Short-circuit Trip class Type Order code Weight
Setting range
protective device (1 pce)
A kg
63 ... 210 1250 A, fuse type gG 10E, 20E, 30E EF205-210 1SAX531001R1101 1.210
115 ... 380 1600 A, fuse type gG 10E, 20E, 30E EF370-380 1SAX611001R1101 1.430
1) ATEX is valid for products produced from week 42, 2015. IECEx is valid for products produced from week 15, 2017.
Ordering details accessories
2CDC231013V0012 Suitable for Description Type Order code Weight
(1 pce)
kg
EF205, EF370 Reset push button 2) KPR-101L 1SFA616162R1014 0.027 7
EF370-380 EF205 Terminal shroud LT200E 1SAX501904R0001 0.085
EF370 Terminal shroud LT320E 1SAX601904R0001 0.105
Note: for more information see catalog 1SFC151005C0201 rev B
2)
Main dimensions mm, inches
1SFC151224F0002 7.4 0.29" 105 4.13" 17.9 0.7" 10 0.39" 30 1.18" 116.5 4.59"
122.8 4.83"
5 0.2"

KPR-101L

5 0.2" 11 0.43"
122 4.8" 151 5.9"
18.5 0.73"

2CDC232004F0012
10 0.39"
Ø 8.5 Ø 0.33" 17.5 0.69" 35 1.38" 5 0.2"
35 1.38" 35 1.38" 121.7 4.79"
EF205-210

122.8 4.83"
105 4.13" 116.5 4.59"
7.4 0.29" 17.9 0.7" 10 0.39" 30 1.18" 5 0.2"

93.8 3.69"

5 0.2" 11 0.43"
122 0.4' 163.6 6.4"
0.9"
22.8

Ø 11 Ø 0.43" 20 0.79" 14 0.55" 35 1.38" 5 0.2" 2CDC232005F0012
43.8 1.72" 43.8 1.72" 121.7 4.79" ²CDC107040C0²01
EF370-380
