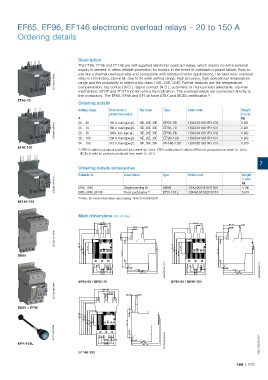

Page 747 - Motor_protection_and_control_Manual_motor_starters_ contactors

EF65, EF96, EF146 electronic overload relays – 20 to 150 A

Ordering details

Description
The EF65, EF96 and EF146 are self-supplied electronic overload relays, which means no extra external
supply is needed. It offers reliable protection for motors in the event of overload or phase failure. Easy to
use like a thermal overload relay and compatible with standard motor applications, the electronic overload
2CDC231001F0012 relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature
range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature
compensation, trip contact (N.C.), signal contact (N.O.), automatic or manual reset selectable, trip-free
mechanism, STOP and TEST function and a trip indication. The overload relays are connected directly to
the contactors. The EF65, EF96 and EF146 have ATEX and IECEx certification .
1)
EF65-70
Ordering details
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
20 ... 56 160 A, fuse type gG 10E, 20E, 30E EF65-56 1SAX331001R1102 0.821
2CDC231002F0012 25 ... 70 160 A, fuse type gG 10E, 20E, 30E EF65-70 1SAX331001R1101 0.821
10E, 20E, 30E
EF96-56
20 ... 56
1SAX341001R1102
160A, fuse type gG
0.802
36 ... 100
1SAX351001R1101
315 A, fuse type gG
54 ... 150 200 A, fuse type gG 10E, 20E, 30E EF96-100 1SAX341001R1101 0.802
10E, 20E, 30E
0.879
EF146-150
EF96-100
1) ATEX is valid for products produced from week 42, 2014. ATEX certification is valid for EF65-56 produced from week 47, 2015.
IECEx is valid for products produced from week 15, 2017.
7
Ordering details accessories
Suitable for Description Type Order code Weight
2CDC231003F0012 EF96, TF96 Single mounting kit 2) DB96 1SAZ901901R1001 kg
(1 pce)
0.190
Note: for more information see catalog 1SFC151004C0201
2) EF65, EF96, EF146 Reset push button KPR-101L 1SFA616162R1014 0.019
EF146-150
Main dimensions mm, inches
55 2.17" 43.7 1.72"
34.65 1.36" 8 0.31" 56.6 2.23" 3 0.12"
8 0.31" 53.3 2.1" 3 0.12"
17.2 0.68"
17.2 0.68"
2CDC231001V0015 4.73" 1" 25.4 0.39" 10 25.4 1" 10 0.39"
120.2
85.2 105.2 4.14" 3.35" 2.92" 38.4 1.51" 103.2 4.06" 121.7 4.79" 105.2 4.14" 85.2 3.35" 38.4 1.51" 4.06" 103.2
DB96 74.2 74.2 2.92"
11 0.43" 11 0.43"
3 0.12" 3 0.12"
16 0.63" 5.5 0.22" 74 2.91" 2CDC232001F0012 16 0.63" 5.5 0.22" 2CDC232002F0012
37 1.46" 101.4 3.99" 37 1.46" 74 2.91"
58 2.28" 105.2 4.14" 58 2.28" 101.4 3.99"
70 2.76" 70 2.76" 105.2 4.14"
EF65-56 / EF65-70 EF96-56 / EF96-100
2CDC231002V0015 89.05 3.51" 6.6 0.26" 15.5 0.61" 4 0.16"
60.1
2.37"
13 0.5"
DB96 + EF96
139.4 5.49" 127 5" 119.25 4.69" 117.4 4.62" 88.9 3.5" 85.2 3.35" 38.4 1.51" 103.7 4.08" 10 0.39"

1SFC151224F0002 74.2 2.92" 11 0.43"

16 0.63"
101.4 3.99"
KPR-101L 37 1.46" 5.5 0.22" 3 0.12" 74 2.91" 2CDC232003F0012 ²CDC107038C0²01
58 2.28"
105.2 4.14"
70 2.76"
EF146-150
ABB | 7/33
