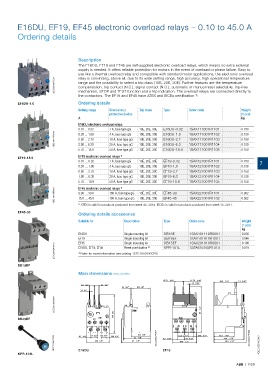

Page 743 - Motor_protection_and_control_Manual_motor_starters_ contactors

E16DU, EF19, EF45 electronic overload relays – 0.10 to 45.0 A

Ordering details

Description
The E16DU, EF19 and EF45 are self-supplied electronic overload relays, which means no extra external
supply is needed. It offers reliable protection for motors in the event of overload or phase failure. Easy to
use like a thermal overload relay and compatible with standard motor applications, the electronic overload
relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature
2CDC231001F0007 range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature
compensation, trip contact (N.C.), signal contact (N.O.), automatic or manual reset selectable, trip-free
mechanism, STOP and TEST function and a trip indication. The overload relays are connected directly to
1)
Ordering details
E16DU-1.0 the contactors. The EF19 and EF45 have ATEX and IECEx certification .
Setting range Short-circuit Trip class Type Order code Weight
protective device (1 pce)
A kg
E16DU electronic overload relays
0.10 ... 0.32 1 A, fuse type gG 10E, 20E, 30E E16DU-0.32 1SAX111001R1101 0.150
1SBC101147F0010 0.80 ... 2.70 10 A, fuse type gG 10E, 20E, 30E E16DU-2.7 1SAX111001R1103 0.150
0.150
0.30 ... 1.00
4 A, fuse type gG
1SAX111001R1102
10E, 20E, 30E
E16DU-1.0
10E, 20E, 30E
1SAX111001R1104
2.00 ... 6.30
20 A, fuse type gG
0.150
E16DU-6.3
1)
EF19 electronic overload relays
EF19-18.9 5.70 ... 18.9 50 A, fuse type gG 10E, 20E, 30E E16DU-18.9 1SAX111001R1105 0.150
0.10 … 0.32 1 A, fuse type gG 10E, 20E, 30E EF19-0.32 1SAX121001R1101 0.158 7
0.30 … 1.00 4 A, fuse type gG 10E, 20E, 30E EF19-1.0 1SAX121001R1102 0.158
0.80 … 2.70 10 A, fuse type gG 10E, 20E, 30E EF19-2.7 1SAX121001R1103 0.158
1.90 … 6.30 20 A, fuse type gG 10E, 20E, 30E EF19-6.3 1SAX121001R1104 0.158
5.70 … 18.9 50 A, fuse type gG 10E, 20E, 30E EF19-18.9 1SAX121001R1105 0.158
EF45 electronic overload relays
1)
1SBC101148F0010 9.00 … 30.0 160 A, fuse type gG 10E, 20E, 30E EF45-30 1SAX221001R1101 0.362
EF45-45
15.0 … 45.0
160 A, fuse type gG
0.362
10E, 20E, 30E
1SAX221001R1102
ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017.
1)
EF45-30 Ordering details accessories
Suitable for Description Type Order code Weight
(1 pce)
kg
E16DU Single mounting kit DB16E 1SAX101110R0001 0.035
EF19 Single mounting kit DB19EF 1SAX101910R1001 0.046
0.100
1SAX201910R0001
DB45EF
Single mounting kit
EF45
2CDC231024V0013 E16DU, EF19, EF45 Reset push button 2) KPR-101L 1SFA616162R1014 0.019
Note: for more information see catalog 1SFC151004C0201
2)
DB19EF
Main dimensions mm, inches
15.73 0.62" 11.78 0.46" 38.8 1.53" 2.3 0.09"
1.2 0.05"
9.3 0.37” 9.3 0.37”
2.4 0.37” 36.3 1.43”
1.2 0.5”
2CDC231002V0014 3.35"
DB45EF 74.6 2.94” 85

10.3 0.41”
1SFC151224F0002 8.2 0.32” 14 0.55” 44.4 1.75” 5.65 0.22” 57 53 2.24” 37.5 1.48” 2CDC232007F0011 8.2 0.32" 10.3 0.41" 14 0.55" 5.65 0.22" 37.5 1.48" 2.18" 2CDC232007F0009 ²CDC10703²C0²01
2.09”
55.4
59.3 2.33"
44.4 1.75"
KPR-101L E16DU EF19
