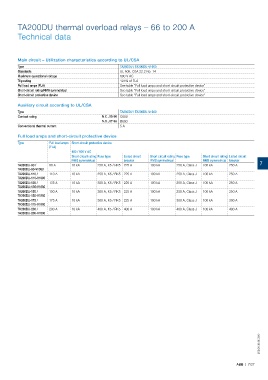

TA200DU thermal overload relays – 66 to 200 A

Technical data

Main circuit – Utilization characteristics according to UL/CSA
Type TA200DU / TA200DU-V1000
Standards UL 508, CSA 22.2 No. 14
Maximum operational voltage 600 V AC
Trip rating 125% of FLA
Full load amps (FLA) See table "Full load amps and short-circuit protective device"
Short-circuit rating RMS symmetrical See table "Full load amps and short-circuit protective device"
Short-circuit protective device See table "Full load amps and short-circuit protective device"
Auxiliary circuit according to UL/CSA
Type TA200DU / TA200DU-V1000
Contact rating N.C., 95-96 C600
N.O., 97-98 B600
Conventional thermal current 5 A

Full load amps and short-circuit protective device
Type Full load amps Short-circuit protective device
(FLA)
480 / 600 V AC
Short circuit rating Fuse type Listed circuit Short circuit rating Fuse type Short circuit rating Listed circuit
RMS symmetrical breaker RMS symmetrical RMS symmetrical breaker
TA200DU-90 / 90 A 10 kA 250 A, K5 / RK5 225 A 100 kA 250 A, Class J 100 kA 250 A 7
TA200DU-90-V1000
TA200DU-110 / 110 A 10 kA 250 A, K5 / RK5 225 A 100 kA 250 A, Class J 100 kA 250 A
TA200DU-110-V1000
TA200DU-135 / 135 A 10 kA 300 A, K5 / RK5 225 A 100 kA 250 A, Class J 100 kA 250 A
TA200DU-135-V1000
TA200DU-150 / 150 A 10 kA 300 A, K5 / RK5 225 A 100 kA 250 A, Class J 100 kA 250 A
TA200DU-150-V1000
TA200DU-175 / 175 A 10 kA 300 A, K5 / RK5 225 A 100 kA 300 A, Class J 100 kA 300 A
TA200DU-175-V1000
TA200DU-200 / 200 A 10 kA 400 A, K5 / RK5 400 A 100 kA 400 A, Class J 100 kA 400 A
TA200DU-200-V1000

2CDC106038C0201
