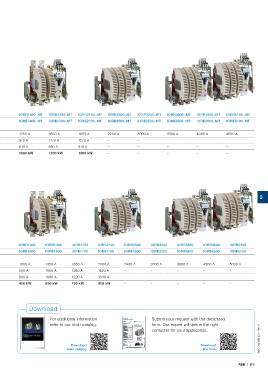

Contactor AC control circuit IORR63..MT IORR125..MT IORR200..MT IORR400..MT IORR500..MT IORR800..MT IORR1400..MT IORR1700..MT IORR2100..MT IORR2500..MT IORR3200..MT IORR3800..MT IORR4500..MT IORR5100..MT
type
DC control circuit IORE63..MT IORE125..MT IORE200..MT IORE400..MT IORE500..MT IORE800..MT IORE1400..MT IORE1700..MT IORE2100..MT IORE2500..MT IORE3200..MT IORE3800..MT IORE4500..MT IORE5100..MT
Categories Ue
AC-1 at 40 °C Ie 85 A 170 A 260 A 400 A 550 A 800 A 1250 A 1650 A 1850 A 2200 A 3000 A 3500 A 4000 A 4500 A
AC-3 690 V AC Ie 85 A 160 A 260 A 400 A 550 A 800 A 970 A 1170 A 1270 A – – – – –
1000 V AC max. Ie 56 A 105 A 180 A 280 A 380 A 580 A 610 A 680 A 810 A – – – – –
AC-3 690 V AC Power 80 kW 150 kW 240 kW 400 kW 540 kW 780 kW 1000 kW 1200 kW 1300 kW – – – – –

9

Contactor AC control circuit – IORR800 IORR1000 IORR1400 IORR1700 IORR2100 IORR2500 IORR3200 IORR3800 IORR4500 IORR5100
type
DC control circuit – IORE800 IORE1000 IORE1400 IORE1700 IORE2100 IORE2500 IORE3200 IORE3800 IORE4500 IORE5100
Categories Ue
AC-1 at 40 °C Ie From 85 A to 550 A, select above IOR..-MT 900 A 1000 A 1350 A 1650 A 2000 A 2400 A 3200 A 3800 A 4500 A 5000 A
AC-3 380-415-440 V AC Ie – 800 A 800 A 1080 A 1260 A 1520 A – – – – –
500 V AC max. Ie – 800 A 800 A 1080 A 1220 A 1340 A – – – – –
AC-3 400 V AC Power – 450 kW 450 kW 630 kW 750 kW 900 kW – – – – –

Download

For additional information Questionnaire Submit your request with the dedicated
Specification for R contactors
Customer ................................................................................................................. ABB .............................................................................................................................
Contact person ...................................................... Date .............................. Contact person ....................................................................................................
Tel. ...............................................................................................................................
Tel. .......................................................... e-mail ..................................................
refer to our main catalog. Quantity ................... Requested delivery date ..................................... Auxiliary contacts form. Our expert will define the right
Project / Application ...........................................................................................................................................................................................................................................
Power circuit
AC switching
Application type Number of N.O. auxiliary contacts ............
Number of N.C. auxiliary contacts .............
AC-1 (resistive load)
AC-3 (direct starting, switching off running motors)
No load breaking
Other ..............................................................................................
Number of poles: N.O. ..................... N.C. .....................
Rated operational current Ie .................. A
Max. making current ............................ A contactor for your application.
Max. breaking current ......................... A
Rated operational voltage Ue ............... V ............... Hz
or
DC switching
Application type
DC-1 (resistive load)
Main catalog DC-3 (shunt motors)
R contactors No load breaking L/R .............. ms
DC-5 (series motors)
Control of AC and DC power circuits Number of poles: N.O. ..................... N.C. .....................
Other .......................................
Rated operational current Ie .................. A
Making current ........................................ A
up to 5000 A Breaking current min. .......... A max. .......... A
Rated operational voltage Ue ............... V DC Control circuit (coil)
Operating conditions AC DC Voltage ..................... V ............... Hz
Voltage ..................... V DC
Switching frequency ............................................. cycles/h Options
Mech. durability required (millions of operating cycles) .............. Magnetical latching 1SBC104002S0201 - Rev. A
Remarks .......................................................................................... Mechanical latching
Accessories .............................................................................................................................................................................................................................................
Please add any other useful documents for further information e.g. technical specification, drawing, wiring diagram, etc.
Replacement of an existing contactor
Brand ................................................................
Download Type .................................................................. W F H D 1SBC104004S0201 - Rev. A Download
F = ............... mm
Fixing dimension
Overall dimensions W = ............... mm

H = ............... mm

D = ............... mm
main catalog ABB | Questionnaire Please photocopy and forward. Questionnaire also available on the ABB Website: the form
www.abb.com/lowvoltage Section: Our offering Select: Control Products > Contactors > Bar mounted contactors
