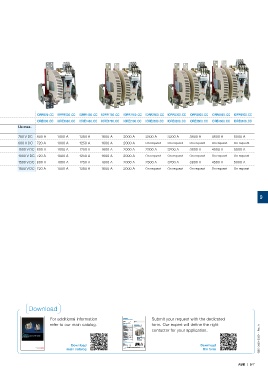

Contactor AC control circuit IORR63..CC IORR125..CC IORR200..CC IORR400..CC IORR500..CC IORR800..CC IORR1000..CC IORR1400..CC IORR1700..CC IORR2100..CC IORR2500..CC IORR3200..CC IORR3800..CC IORR4500..CC IORR5100..CC
type
DC control circuit IORE63..CC IORE125..CC IORE200..CC IORE400..CC IORE500..CC IORE800..CC IORE1000..CC IORE1400..CC IORE1700..CC IORE2100..CC IORE2500..CC IORE3200..CC IORE3800..CC IORE4500..CC IORE5100..CC
Number of poles Categories Ue max. Ue max.
in series
DC-1 500 V DC Ie 85 A 170 A 275 A 400 A 550 A 750 V DC 800 A 1000 A 1250 A 1600 A 2000 A 2300 A 3200 A 3800 A 4500 A 5000 A
1 pole
DC-3 / DC-5 500 V DC Ie 68 A 125 A 205 A 350 A 500 A 600 V DC 720 A 1000 A 1250 A 1600 A 2000 A On request On request On request On request On request
DC-1 1000 V DC Ie 85 A 170 A 275 A 400 A* 550 A* 1500 V DC 800 A 1000 A 1250 A 1600 A 2000 A 2300 A 3200 A 3800 A 4500 A 5000 A
2 poles
DC-3 / DC-5 1000 V DC Ie 68 A 125 A 205 A 350 A 500 A 1000 V DC 720 A 1000 A 1250 A 1600 A 2000 A On request On request On request On request On request
DC-1 1500 V DC Ie 85 A* 170 A* 275 A* 400 A* 550 A* 1500 V DC 800 A 1000 A 1250 A 1600 A 2000 A 2300 A 3200 A 3800 A 4500 A 5000 A
3 poles
DC-3 / DC-5 1500 V DC Ie 68 A* 125 A* 205 A* 350 A* 500 A* 1500 V DC 720 A 1000 A 1250 A 1600 A 2000 A On request On request On request On request On request
* Ue max. = 1500 V DC, version with increased insulation for 1000 V DC < Ue ≤ 1500 V DC, please consult us.

9

Download

For additional information Questionnaire Submit your request with the dedicated
Specification for R contactors
Customer ................................................................................................................. ABB .............................................................................................................................
Contact person ...................................................... Date .............................. Contact person ....................................................................................................
Tel. .......................................................... e-mail ..................................................
Tel. ...............................................................................................................................
refer to our main catalog. Quantity ................... Requested delivery date ..................................... Auxiliary contacts form. Our expert will define the right
Project / Application ...........................................................................................................................................................................................................................................
Power circuit
AC switching
Number of N.C. auxiliary contacts .............
Application type Number of N.O. auxiliary contacts ............
AC-1 (resistive load)
AC-3 (direct starting, switching off running motors)
No load breaking
Other ..............................................................................................
Number of poles: N.O. ..................... N.C. .....................
Rated operational current Ie .................. A
Max. making current ............................ A contactor for your application.
Max. breaking current ......................... A
Rated operational voltage Ue ............... V ............... Hz
or
DC switching
Application type
DC-1 (resistive load)
Main catalog DC-3 (shunt motors)
R contactors No load breaking L/R .............. ms
DC-5 (series motors)
Control of AC and DC power circuits Number of poles: N.O. ..................... N.C. .....................
Other .......................................
Rated operational current Ie .................. A
Making current ........................................ A
up to 5000 A Breaking current min. .......... A max. .......... A Control circuit (coil)
Rated operational voltage Ue ............... V DC AC Voltage ..................... V ............... Hz
Operating conditions DC Voltage ..................... V DC
Switching frequency ............................................. cycles/h Options
Mech. durability required (millions of operating cycles) .............. Magnetical latching 1SBC104001S0201 - Rev. A
Remarks .......................................................................................... Mechanical latching
Accessories .............................................................................................................................................................................................................................................
Please add any other useful documents for further information e.g. technical specification, drawing, wiring diagram, etc.
Replacement of an existing contactor
Brand ................................................................
Download Type .................................................................. W F H D 1SBC104004S0201 - Rev. A Download
F = ............... mm
Fixing dimension
Overall dimensions W = ............... mm

H = ............... mm

D = ............... mm
main catalog ABB | Questionnaire Please photocopy and forward. Questionnaire also available on the ABB Website: the form
www.abb.com/lowvoltage Section: Our offering Select: Control Products > Contactors > Bar mounted contactors
ABB | 9/7
