P. 787

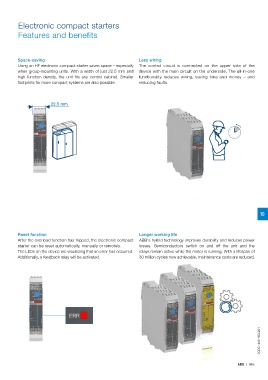

Electronic compact starters
Features and benefits
Space-saving Less wiring
Using an HF electronic compact starter saves space – especially The control circuit is connected on the upper side of the
when group-mounting units. With a width of just 22.5 mm and device with the main circuit on the underside. The all-in-one
high function density, the unit fits any control cabinet. Smaller functionality reduces wiring, saving time and money – and
footprints for more compact systems are also possible. reducing faults.
22.5 mm
10
Reset function Longer working life
After the overload function has tripped, the electronic compact ABB's hybrid technology improves durability and reduces power
starter can be reset automatically, manually or remotely. losses. Semiconductors switch on and off the unit and the
The LEDs on the device are visualizing that an error has occurred. relays remain active while the motor is running. With a lifespan of
Additionally, a feedback relay will be activated. 30 million cycles now achievable, maintenance costs are reduced.
2CDC130018C0201
ABB | 10/5
