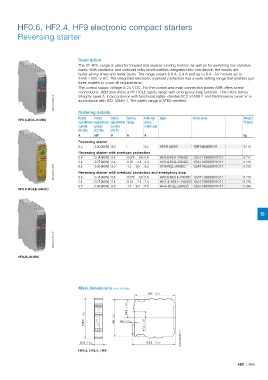

HF0.6, HF2.4, HF9 electronic compact starters

         Reversing starter





                                    Description
                                    The HF-ROL-range is used for forward and reverse running motors, as well as for switching non resistive
                                    loads. With contactor and overload relay functionalities integrated into one device, the results are
                                    faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to
                                    3 kW – 500  V AC. The integrated electronic overload protection has a wide setting range that enables just
                                    three models to cover all requirements.
                                    The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw
                                    connections. ABB also offers a HF-ROLE safety range with emergency stop function. This offers Safety
                                    Integrity Level 3, in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in
                         2CDC241004V0016  accordance with ISO 13849-1. The safety range is ATEX-certified.

                                    Ordering details
                                    Rated    Rated   Rated   Setting    Full load   Type   Order code        Weight
         HF0.6-ROL-24VDC
                                    operational  operational  operational  range  amps                       (1 pce)
                                    current    power  current    motor use
                                    AC-53a  AC-53a  AC-51
                                    A      kW     A      A       A                                           kg
                                    Reversing starter
                                    6.5    3.00 (400V) 9.0  -    6.5    HF9-R-24VDC    1SAT144000R1011       0.174
                                    Reversing starter with overload protection
                                    0.6    0.18 (400V) 0.6  0.075 … 0.6 0.6  HF0.6-ROL-24VDC  1SAT115000R1011  0.217
                                    2.4    0.75 (400V) 2.4  0.18 … 2.4  2.4  HF2.4-ROL-24VDC  1SAT125000R1011  0.219
                         2CDC241001V0016  Reversing starter with overload protection and emergency stop
                                                                                                             0.218
                                                                        HF9-ROL-24VDC
                                           3.00 (400V) 9.0
                                                          1.5 … 9.0
                                                                 6.5
                                    6.5
                                                                                       1SAT145000R1011
                                    0.6
                                           0.75 (400V) 2.4
                                                          0.18 … 2.4  2.4
                                    2.4    0.18 (400V) 0.6  0.075 … 0.6 0.6  HF0.6-ROLE-24VDC 1SAT116000R1011  0.218
                                                                        HF2.4-ROLE-24VDC 1SAT126000R1011
                                                                                                             0.270
                                    6.5    3.00 (400V) 9.0  1.5 … 9.0  6.5  HF9-ROLE-24VDC  1SAT146000R1011  0.289
         HF0.6-ROLE-24VDC
                                                                                                                    10

                         2CDC241013V0016





         HF9-R-24VDC






                                    Main dimensions mm, inches











                                                                                 2CDC242003F0017


                                    HF0.6, HF2.4, HF9
