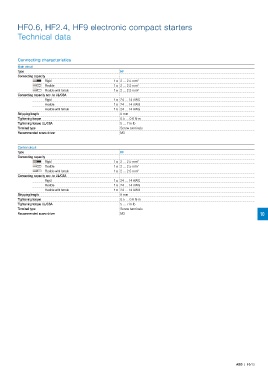

HF0.6, HF2.4, HF9 electronic compact starters

Technical data

Connecting characteristics
Main circuit
Type HF
Connecting capacity
Rigid 1 x 2 ... 2.5 mm²
Flexible 1 x 2 ... 2.5 mm²
Flexible with ferrule 1 x 2 ... 2.5 mm²
Connecting capacity acc. to UL/CSA
Rigid 1 x 24 ... 14 AWG
Flexible 1 x 24 ... 14 AWG
Flexible with ferrule 1 x 24 ... 14 AWG
Stripping length 8 mm
Tightening torque 0.5 ... 0.6 N·m
Tightening torque UL/CSA 5 ... 7 in·lb
Terminal type Screw terminals
Recommended screw driver M3

Control circuit
Type HF
Connecting capacity
Rigid 1 x 2 ... 2.5 mm²
Flexible 1 x 2 ... 2.5 mm²
Flexible with ferrule 1 x 2 ... 2.5 mm²
Connecting capacity acc. to UL/CSA
Rigid 1 x 24 ... 14 AWG
Flexible 1 x 24 ... 14 AWG
Flexible with ferrule 1 x 24 ... 14 AWG
Stripping length 8 mm
Tightening torque 0.5 ... 0.6 N·m
Tightening torque UL/CSA 5 ... 7 in·lb
Terminal type Screw terminals
Recommended screw driver M3 10
