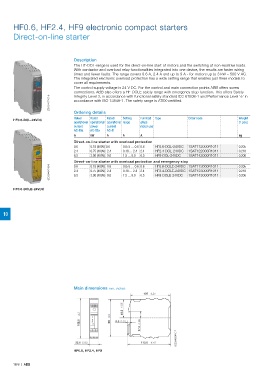

HF0.6, HF2.4, HF9 electronic compact starters

Direct-on-line starter

Description
The HF-DOL-range is used for the direct-on-line start of motors and the switching of non-resistive loads.
With contactor and overload relay functionalities integrated into one device, the results are faster wiring
times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to 3 kW – 500 V AC.
The integrated electronic overload protection has a wide setting range that enables just three models to
cover all requirements.
The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw
connections. ABB also offers a HF-DOLE safety range with emergency stop function. This offers Safety
Integrity Level 3, in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in
2CDC241007V0016 accordance with ISO 13849-1. The safety range is ATEX-certified.

Ordering details
Rated Rated Rated Setting Full load Type Order code Weight
HF0.6-DOL-24VDC
operational operational operational range amps (1 pce)
current power current motor use
AC-53a AC-53a AC-51
A kW A A A kg
Direct-on-line starter with overload protection
0.6 0.18 (400V) 0.6 0.075 … 0.6 0.6 HF0.6-DOL-24VDC 1SAT112000R1011 0.205
2.4 0.75 (400V) 2.4 0.18 … 2.4 2.4 HF2.4-DOL-24VDC 1SAT122000R1011 0.218
6.5 3.00 (400V) 9.0 1.5 … 9.0 6.5 HF9-DOL-24VDC 1SAT142000R1011 0.206
Direct-on-line starter with overload protection and emergency stop 0.205
2CDC241010V0016 2.4 0.75 (400V) 2.4 0.18 … 2.4 2.4 HF2.4-DOLE-24VDC 1SAT123000R1011 0.218
HF0.6-DOLE-24VDC 1SAT113000R1011
0.18 (400V) 0.6
0.075 … 0.6 0.6
0.6
1SAT143000R1011
0.206
1.5 … 9.0
HF9-DOLE-24VDC
6.5
6.5
3.00 (400V) 9.0
HF0.6-DOLE-24VDC
10

Main dimensions mm, inches

2CDC242003F0017

HF0.6, HF2.4, HF9
