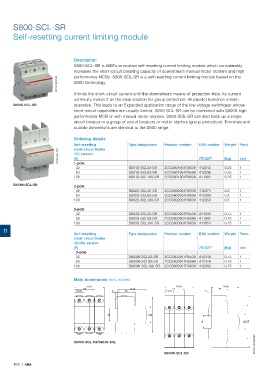

S800-SCL-SR

Self-resetting current limiting module

Description
S800-SCL-SR is ABB’s innovative self-resetting current limiting module which considerably
increases the short-circuit breaking capacity of downstream manual motor starters and high
performance MCBs. S800-SCL-SR is a self resetting current limiting module based on the
2CCC413380F0001 S800 technology.

It limits the short-circuit current until the downstream means of protection trips. Its current
continuity makes it as the ideal solution for group protection: All parallel branches remain
S800S-SCL-SR operative. This leads to an Expanded application range of the low voltage switchgear whose
short-circuit capabilities are usually limited. S800-SCL-SR can be combined with S800S high
performance MCB or with manual motor starters. S800-SCL-SR can also back up a single
circuit breaker or a group of circuit breakers or motor starters (group protection). Terminals and
outside dimensions are identical to the S800 range.

Ordering details
Self-resetting Type designation Product number EAN number Weight Pack.
2CCC413381F0001 IEC version 7612271 [kg] unit
short-circuit limiter
[A]
1-pole
32 S801S-SCL32-SR 2CCS801901R0539 412012 0.25 1
63 S801S-SCL63-SR 2CCS801901R0599 412036 0.25 1
100 S801S-SCL100-SR 2CCS801901R0639 411992 0.25 1

S803W-SCL-SR 2-pole
32 S802S-SCL32-SR 2CCS802901R0539 412074 0.5 1
63 S802S-SCL63-SR 2CCS802901R0599 412098 0.5 1
100 S802S-SCL100-SR 2CCS802901R0639 412050 0.5 1
3-pole
32 S803S-SCL32-SR 2CCS803901R0539 411930 0.75 1
63 S803S-SCL63-SR 2CCS803901R0599 411947 0.75 1
100 S803S-SCL100-SR 2CCS803901R0639 411954 0.75 1
11
Self-resetting Type designation Product number EAN number Weight Pack.
short-circuit limiter
IEC/UL version
[A] 7612271 [kg] unit
3-pole
32 S803W-SCL32-SR 2CCS803917R0539 412319 0.75 1
63 S803W-SCL63-SR 2CCS803917R0599 412326 0.75 1
100 S803W-SCL100-SR 2CCS803917R0639 412302 0.75 1

Main dimensions mm, inches
79.50 79.50 76.50
53 76.50 53 46
26.50 6 46 26.50 6

35 45 95
35 45 95 142

2CCC413012B0201
S800S-SCL-SR/S803S-SCL

S803W-SCL-SR
