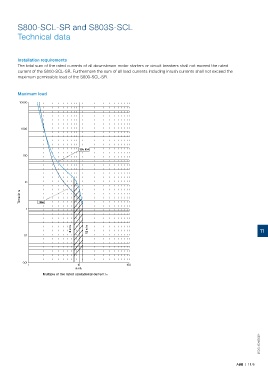

S800-SCL-SR and S803S-SCL

Technical data

Installation requirements
The total sum of the rated currents of all downstream motor starters or circuit breakers shall not exceed the rated
current of the S800-SCL-SR. Furthermore the sum of all load currents including inrush currents shall not exceed the
maximum permissible load of the S800-SCL-SR.

Maximum load

10000

1000

100

time [s] 10

Time in s

1

11
0.1

0.01
1 10 100
n x Ie
Multiple of the rated operational current Ie

2CCC413012B0201
